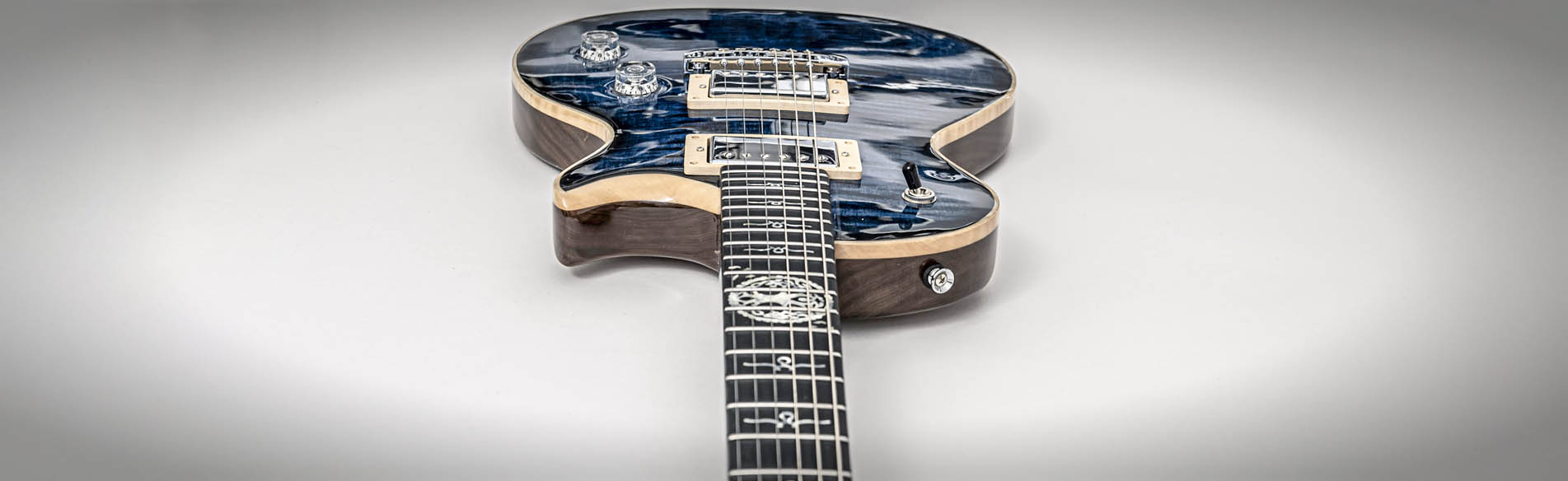

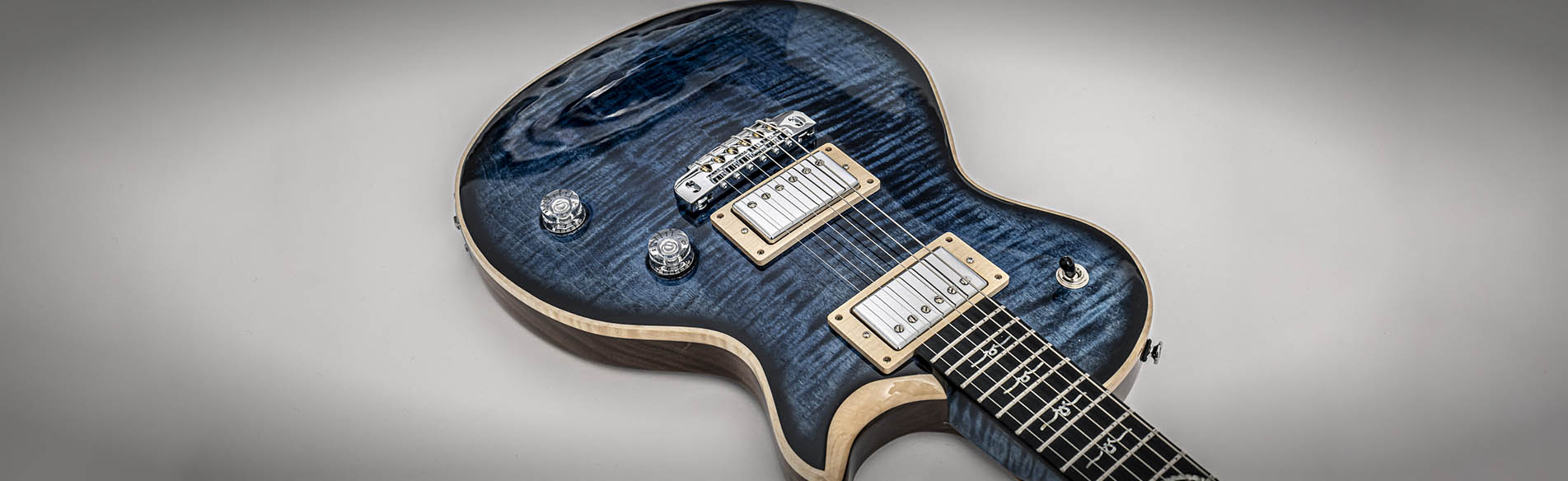

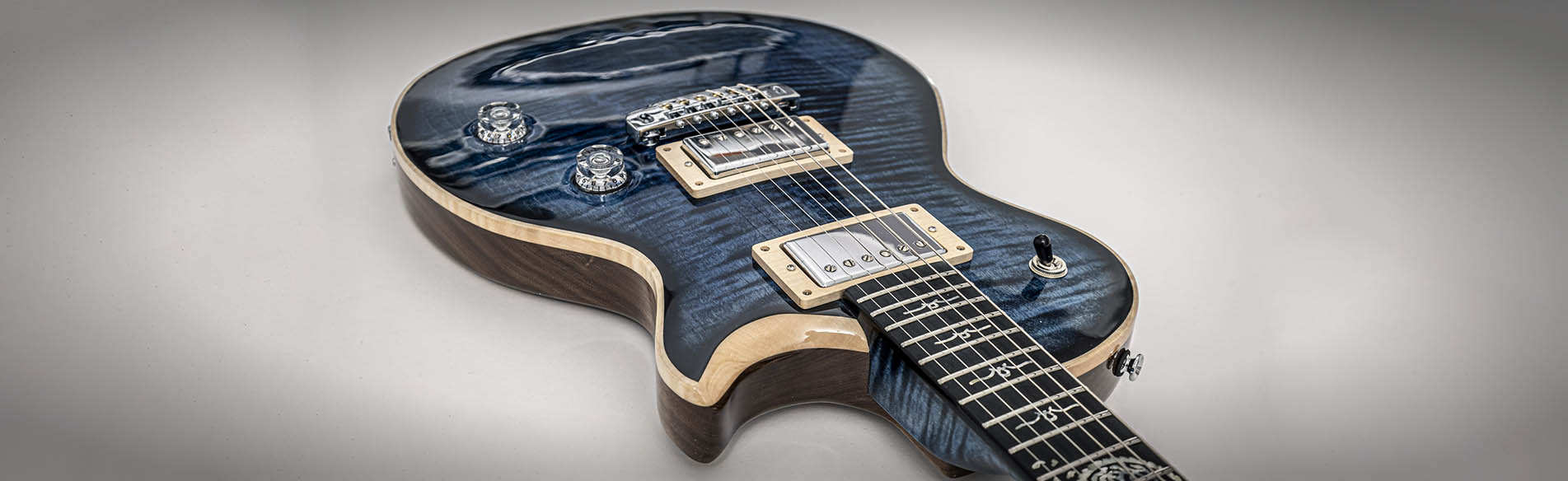

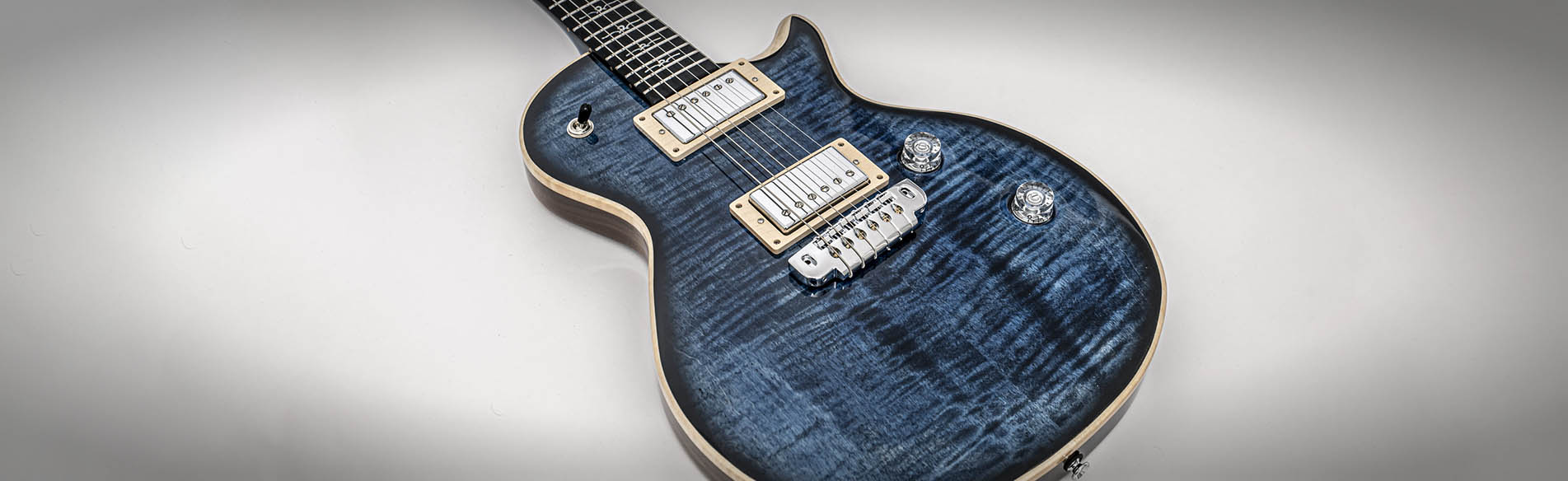

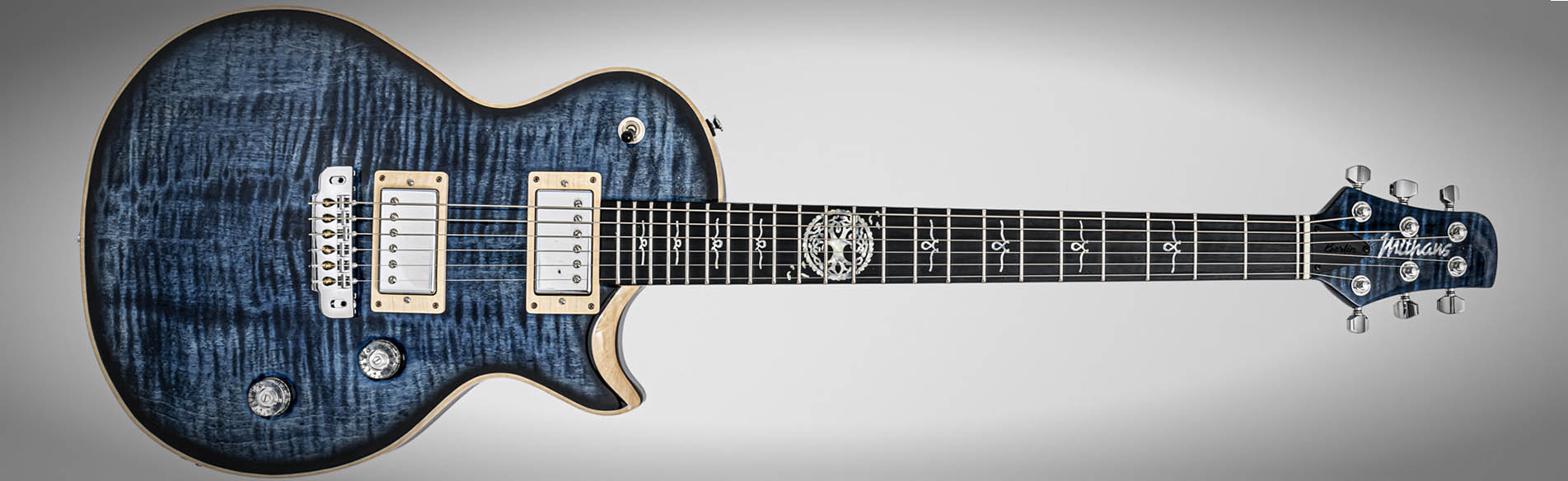

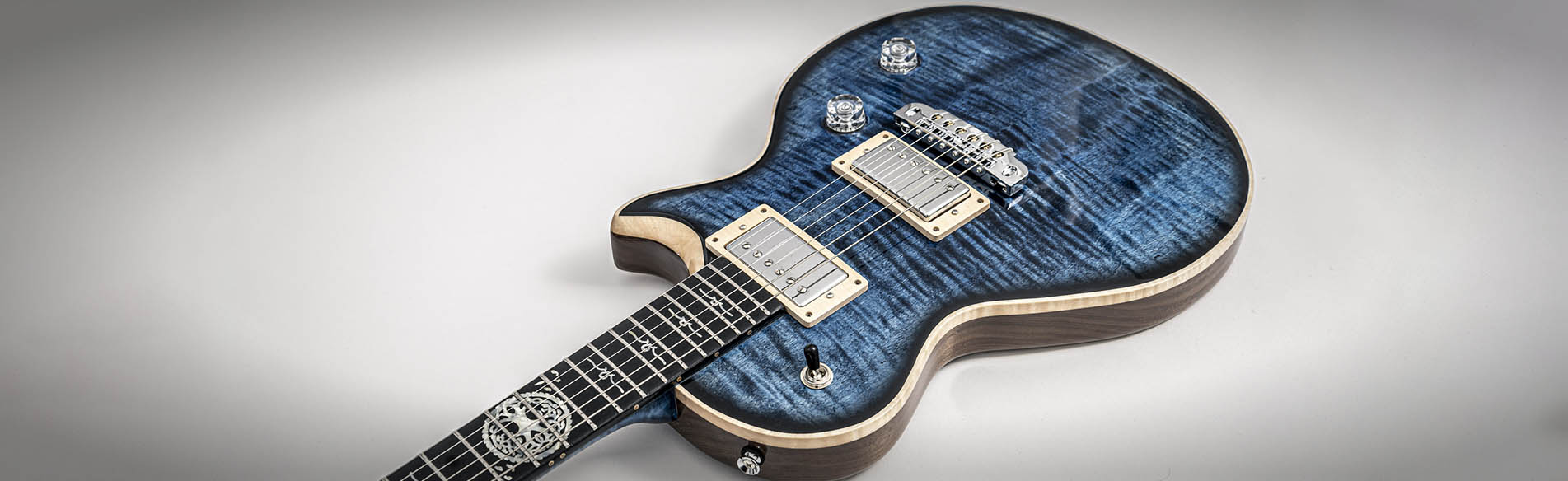

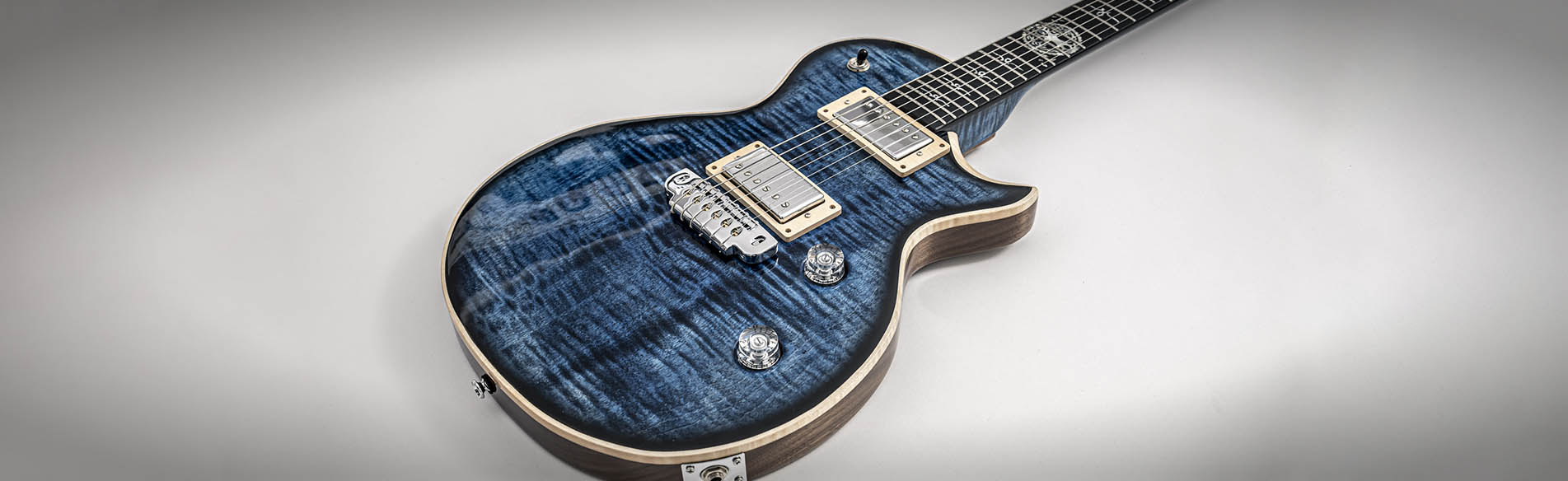

BERLIN cobalt blue

Berlin

Berlin series is a premium LP-style guitar. This model has luxury American Walnut body with premium grade 5A figured maple top, tightly connected to glued-in 5A figured maple neck with ebony fingerboard. This guitar features only 10 degrees headstock angle which takes care of both - tuning stability and breakage safety. Tuning stability does not end there; Gotoh locking tuners, zero fret with Duro nut and premium Gotoh wrap-around bridge. For better sustain and lighter weight we carefully chambered it's body. Playability is increased with stainless steel frets. For added esthetics we installed real brass side dots with wooden inlays and walnut cavity covers. And Berlin series always comes with high-end pickups. It's a masterbuilt!

GENERAL

Type	Solidbody set-in
Color	Cobalt Blue
scale length	24.75
Headstock angle	10 degrees
Weight	3,18 kg (7.01 lbs)

WOOD

Body top	5A Flamed Maple
Body back	Walnut
Neck	One piece 5A flamed maple
Fingerboard	Ebony

FINISH

Body	High Gloss
Neck	High Gloss
Binding	Natural flamed maple

NECK

Frets type	Stainless steel medium jumbo
Frets	23
Nut	Zero fret with Graph Tech nut
Inlays	Custom shaped Mother of Pearl celluloid
Thickness	21mm (1st fret) - 23mm (12th fret)
Neck Radious	12
Neck shape / profile	Oval C-shape
Nut width	43 mm

ELECTRONICS

Bridge pickup	Hand Wound Mithans DAS PAF'59
Neck Pickup	Hand Wound Mithans DAS PAF'59
Controls	Volume, tone, 3-way switch

HARDWARE

Bridge	Gotoh wraparound
Tuners	Gotoh locking tuners with real EBONY knobs
STRINGS	Earnie Ball Regular Slinky 10-46
Extras	Premium Hiscox Hard Case included

BERLIN cobalt blue

Details

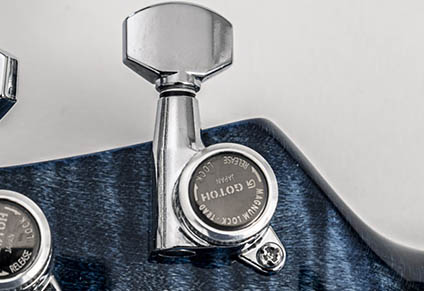

GOTOH LOCKING TUNERS

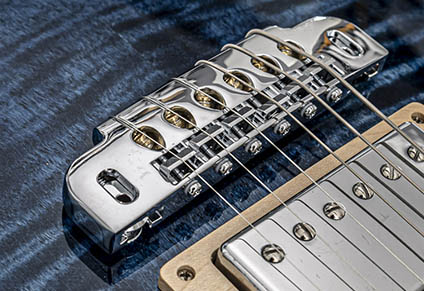

GOTOH WRAP-AROUND BRIDGE

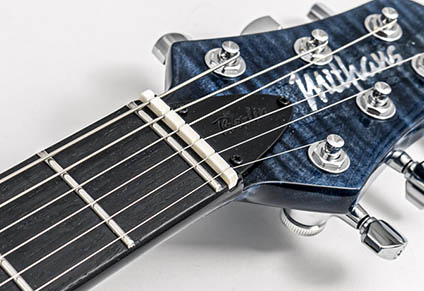

ZERO FRET & DURO NUT

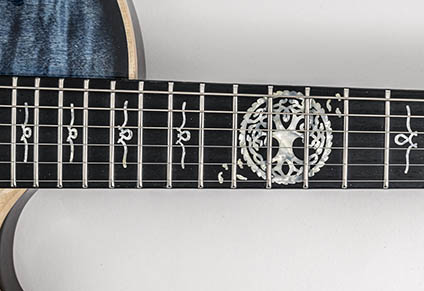

EBONY FINGERBOARD

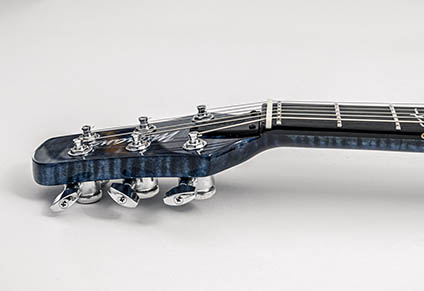

ONLY 10 DEGREES HEADSTOCK ANGLE

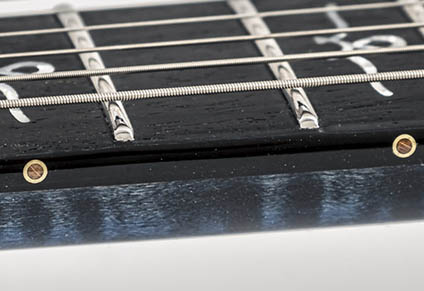

STAINLESS STEEL FRETS

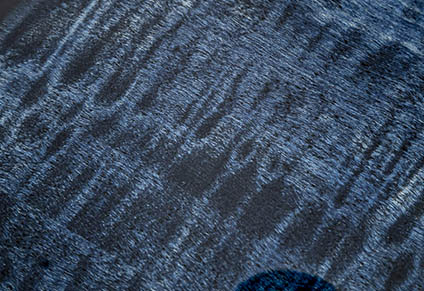

MASTERGRADE 5A TOP

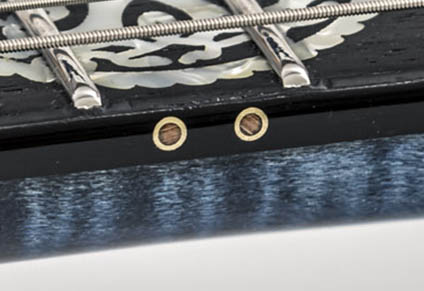

BRASS SIDE DOTS

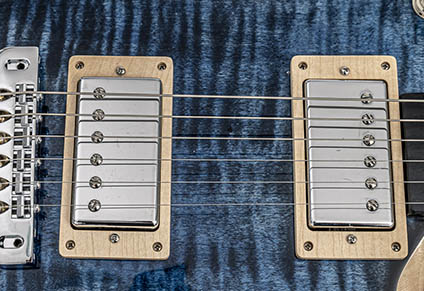

MITHANS DAS PAF'59 HAND WOUND PICKUPS

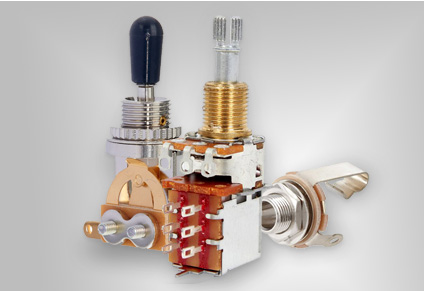

HIGH-END ELECTRONICS

REAL MAPLE PICKUP RINGS

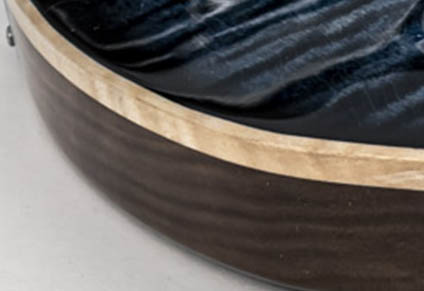

NATURAL FLAME MAPLE FAUX BINDING

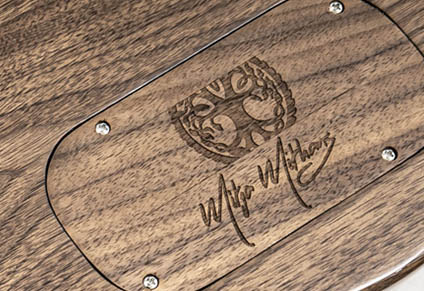

WALNUT BODY AND COVERS

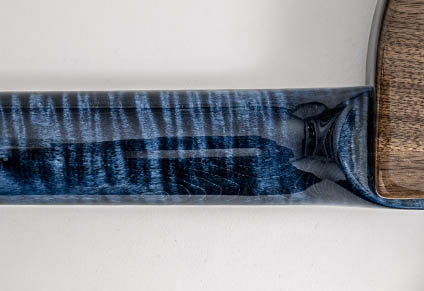

MASTERGRADE 5A ONE PIECE NECK
