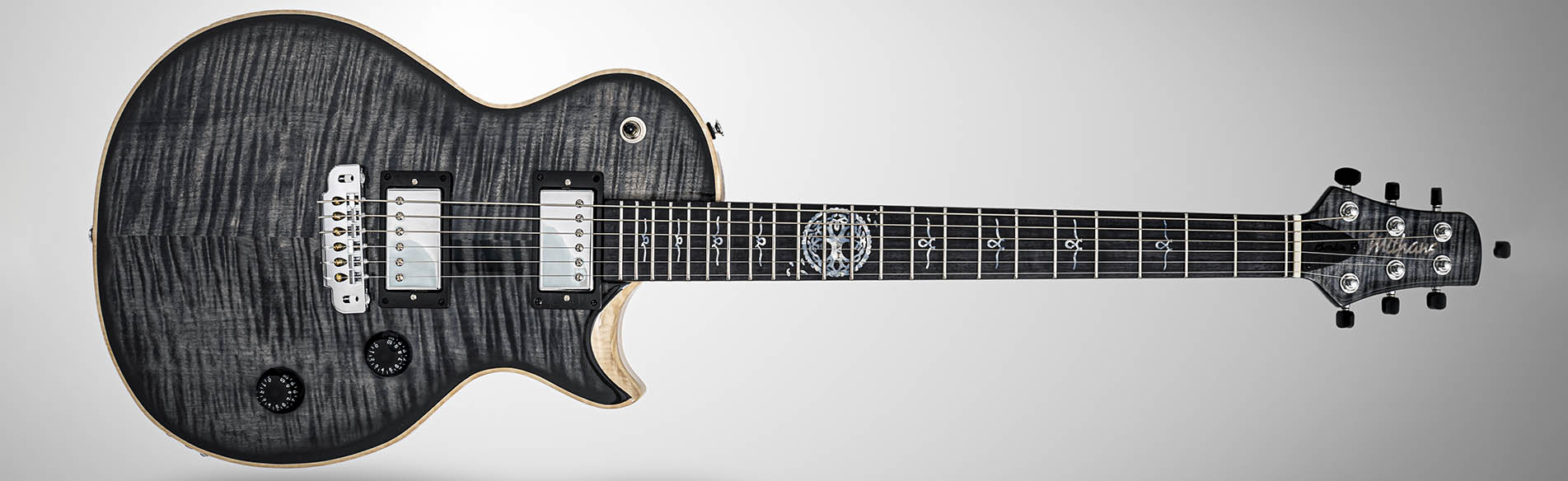

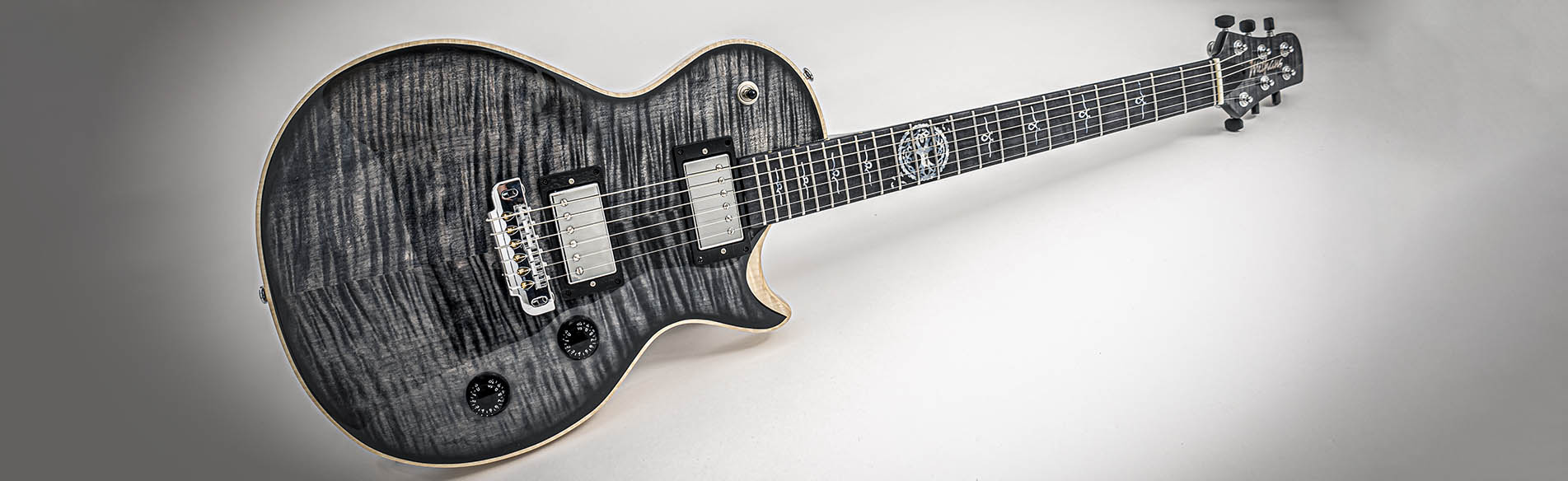

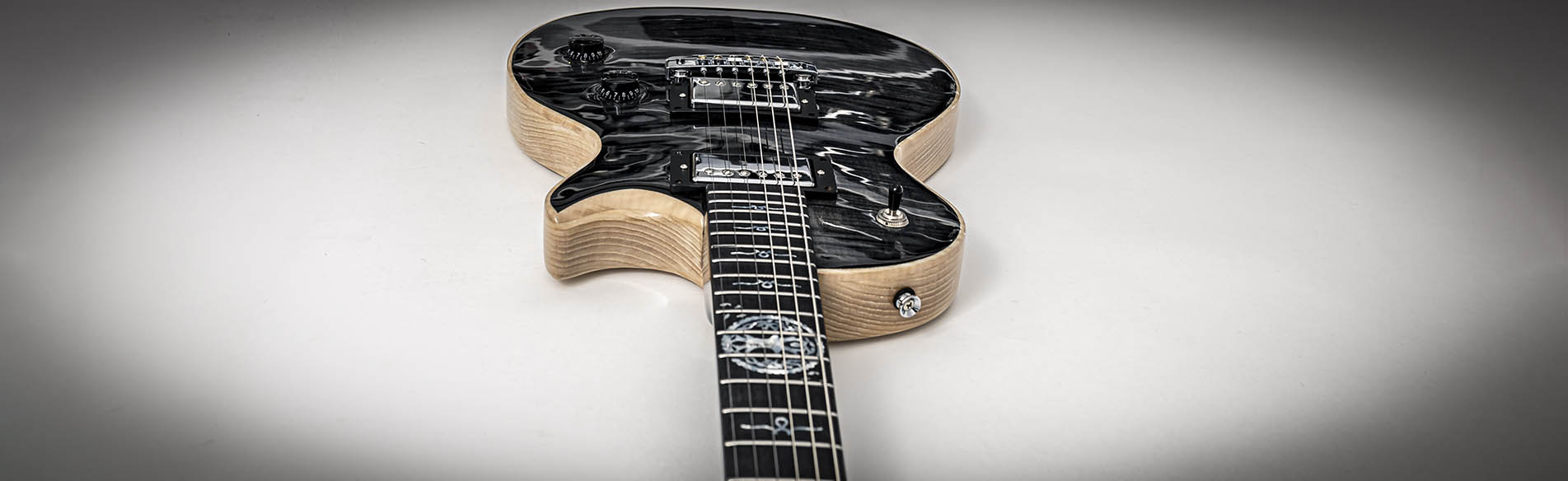

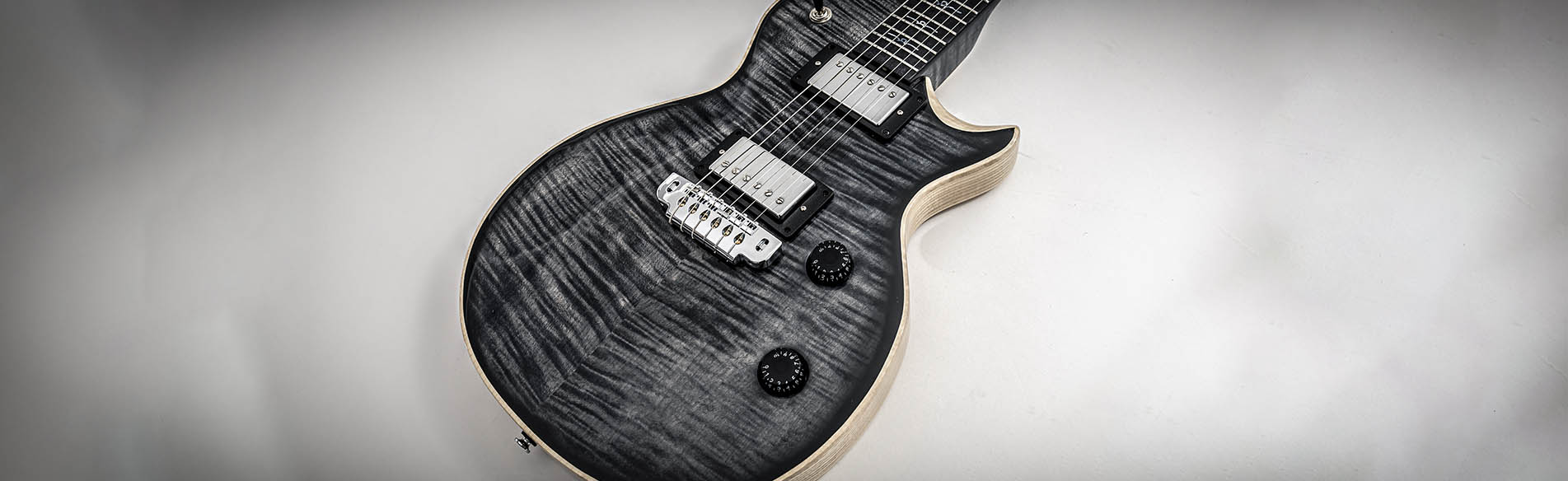

BERLIN (charcoal)

BERLIN

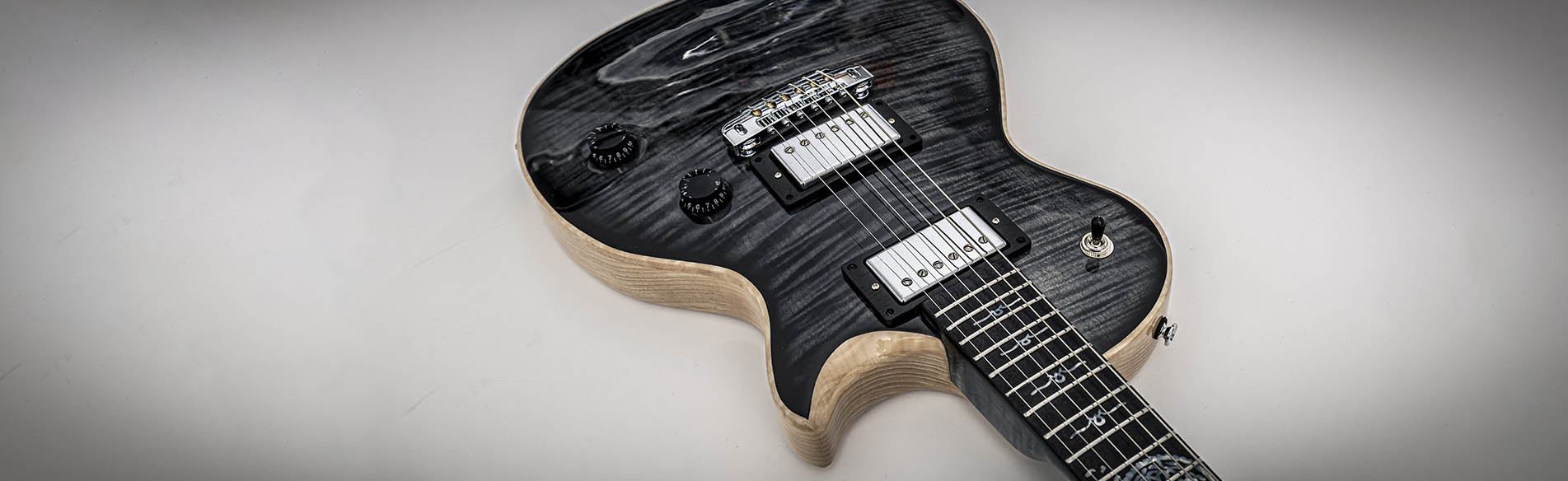

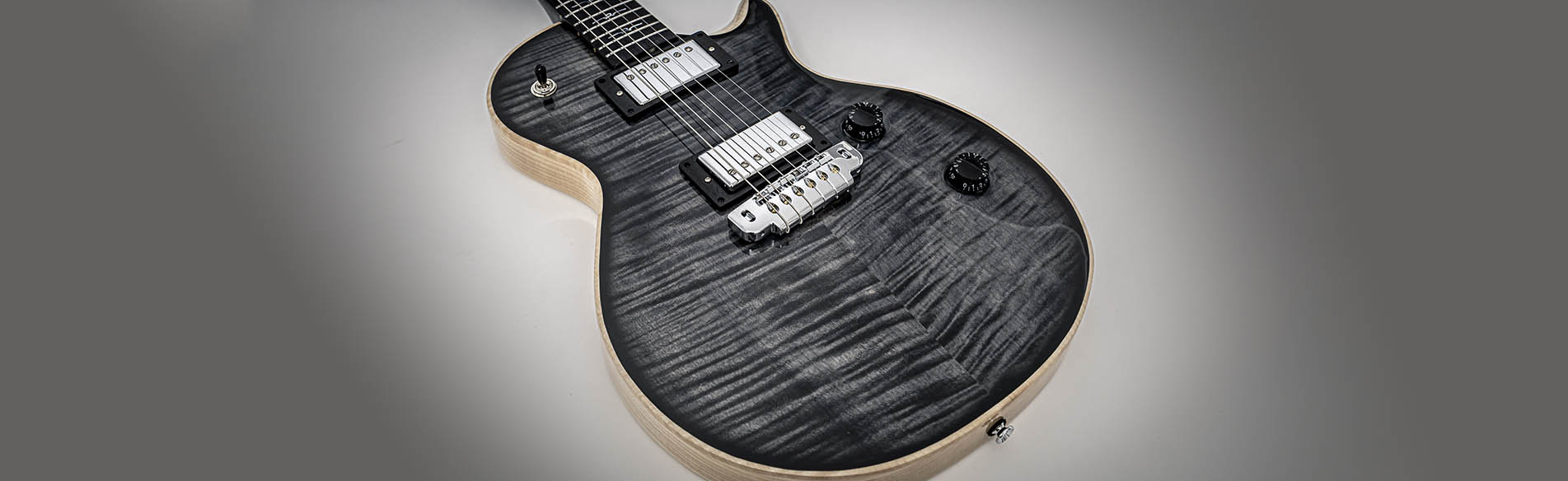

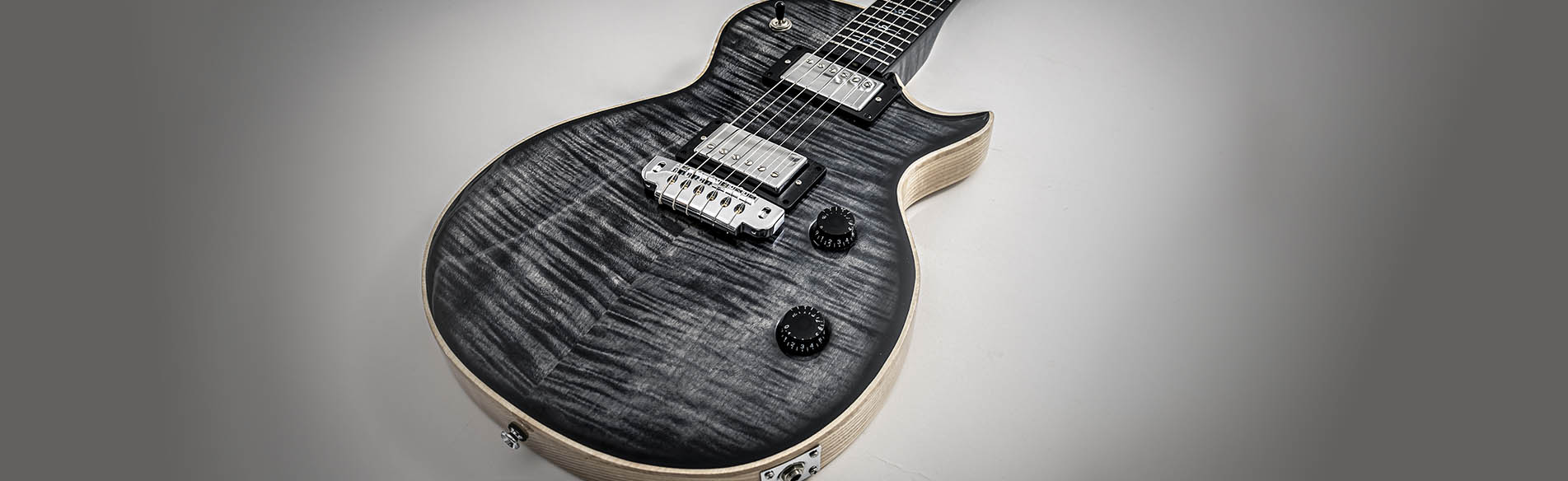

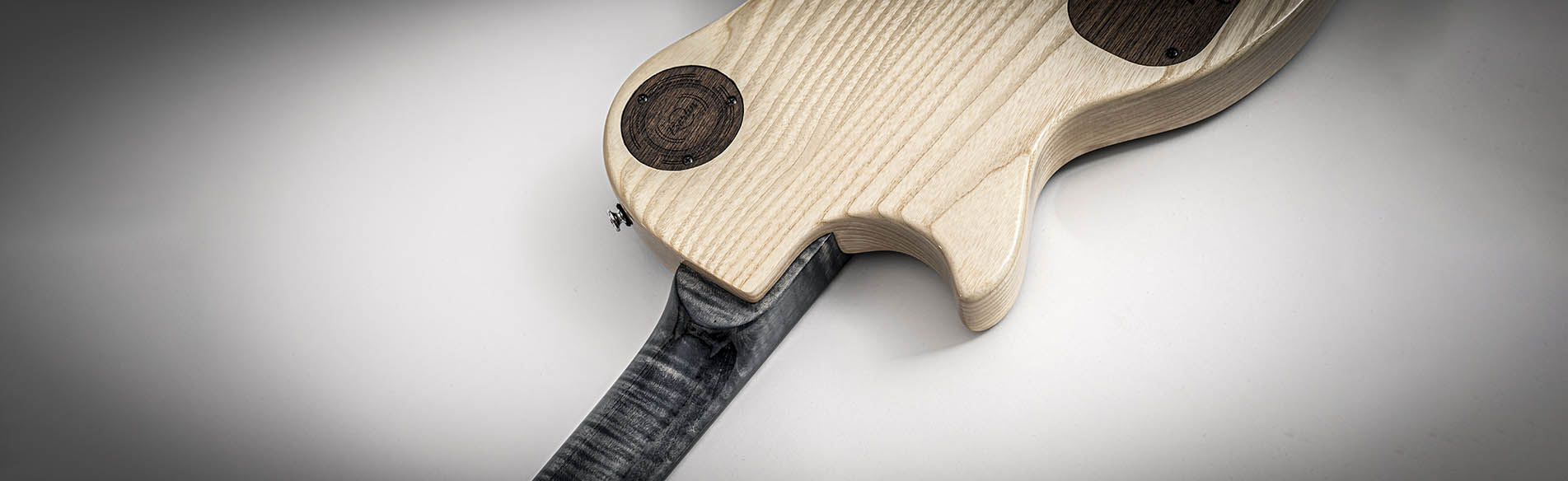

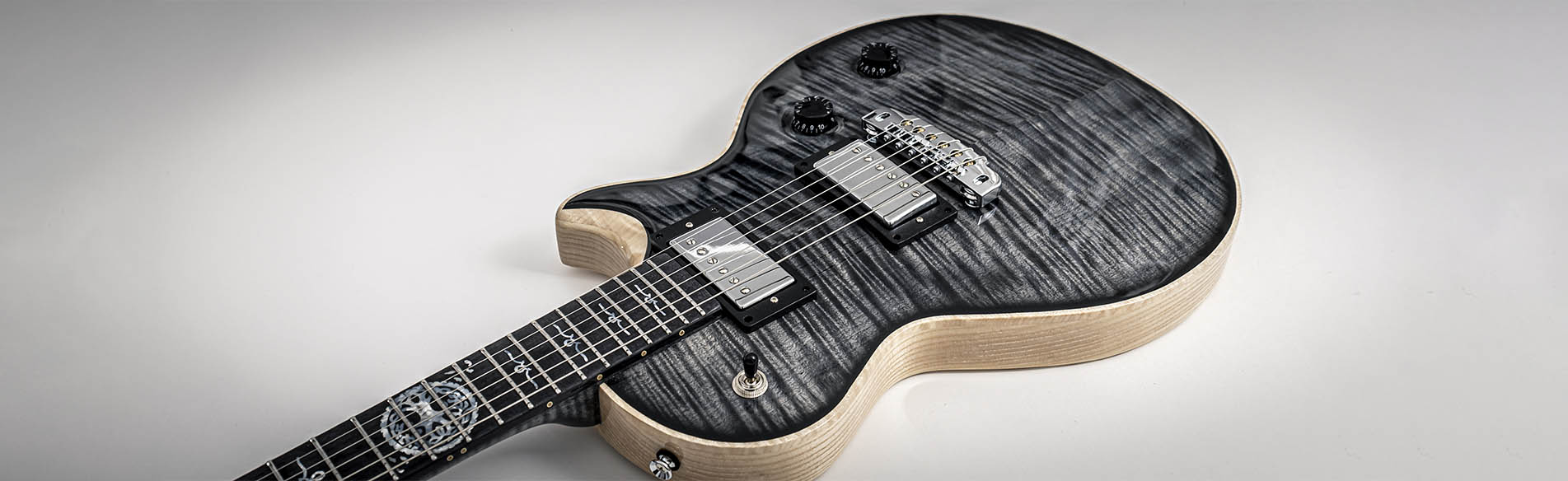

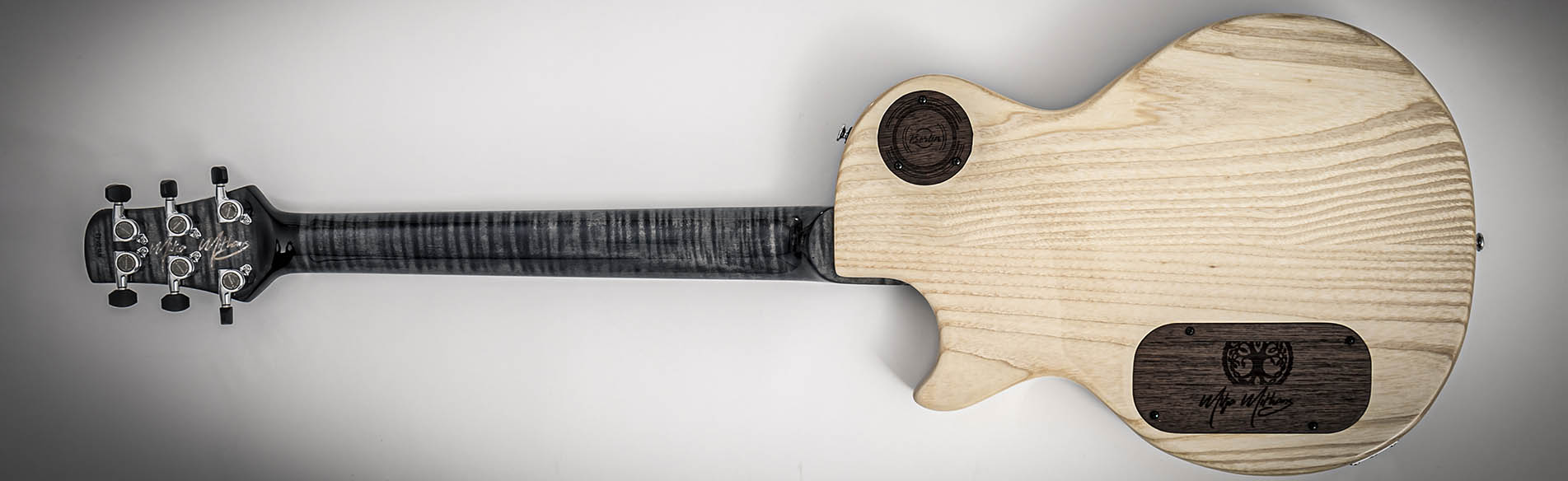

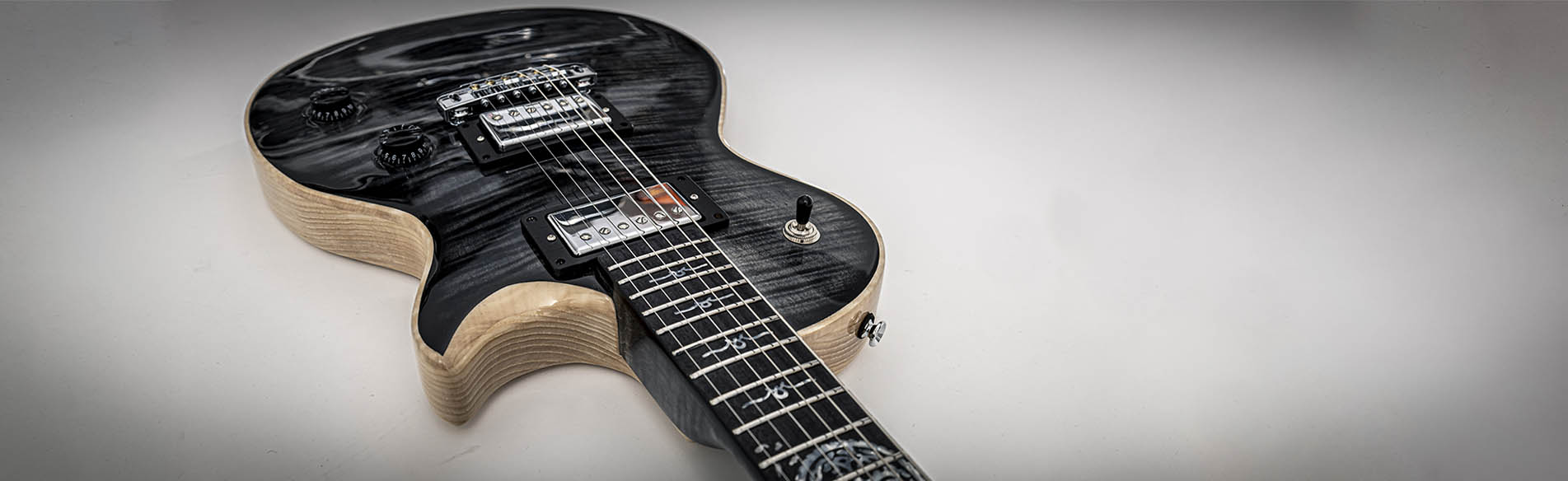

This masterbuilt features luxury of ash body with master-grade 5A flame maple top AND back, natural flame maple binding and one piece flame maple neck with ebony fingerboard. LP shaped beauty with Gotoh wrap-around bridge, bone nut, Gotoh locking tuners, Zero fret and only 10 degrees headstock angle will give you excellent tuning stability. Chambered body for lighter weight and brass side dots with maple inserts for esthetic perfection. And Berlin series always comes with hand wound boutique Mithans DAS PAF'59 pickups. It's a masterbuilt!

GENERAL

Type	Solidbody set-in, one piece neck, chambered
Color	Charcoal
scale length	24.75
Headstock angle	10 degrees
Weight	3,17 kg (6.98 lbs)

WOOD

Body top	5A Flamed Maple
Body back	Ash
Neck	One piece 5A flamed maple
Fingerboard	Ebony

FINISH

Body	High Gloss
Neck	High Gloss
Binding	Natural flamed maple

NECK

Frets type	Stainless steel medium jumbo
Frets	23
Nut	Zero fret with bone nut
Inlays	Custom shapped Mother of Pearl celoluid
Thickness	21,5 mm (1st fret) - 23,5 mm (12th fret)
Neck Radious	12
Neck shape / profile	Oval C-shape
Nut width	42 mm

ELECTRONICS

Bridge pickup	Hand Wound Mithans DAS PAF'59
Neck Pickup	Hand Wound Mithans DAS PAF'59
Custom Electronics	volume, tone, 3-way switch

HARDWARE

Bridge	Gotoh wrap-around
Tuners	Gotoh locking tuners with real EBONY knobs
STRINGS	Earnie Ball Regular Slinky 10-46
Extras	Premium Hiscox Hard Case included

BERLIN (charcoal)

Details

STAINLESS STEEL FRETS

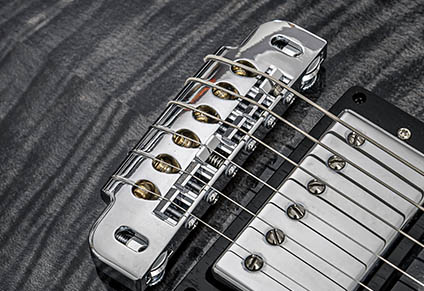

GOTOH WRAP-AROUND BRIDGE

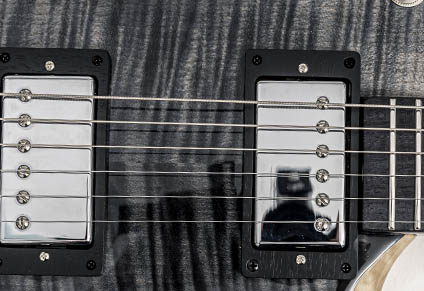

MITHANS DAS PAF'59 HAND WOUND PICKUPS

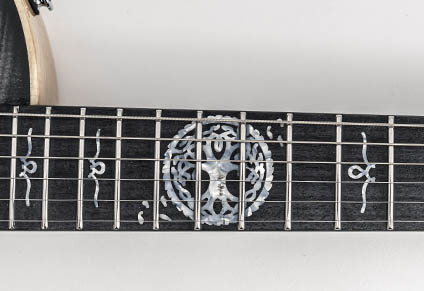

EBONY FINGERBOARD

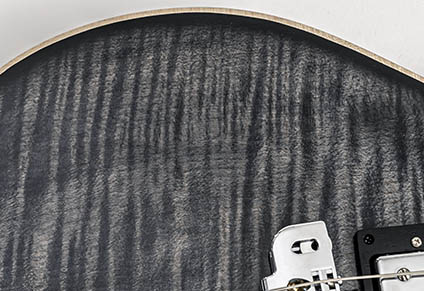

MASTERGRADE 5A FLAME MAPLE TOP

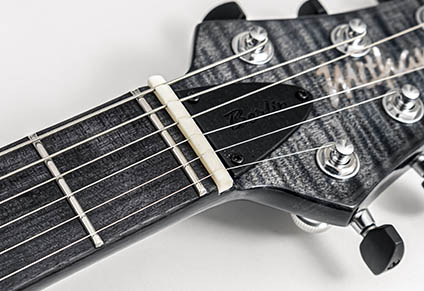

ZERO FRET AND BONE NUT

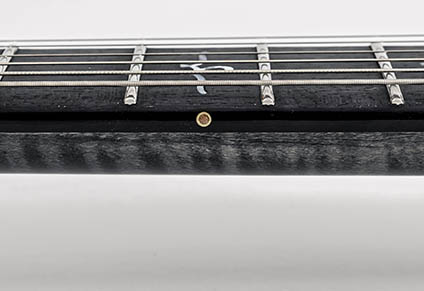

BRASS SIDE DOTS WITH WOODEN INSERTS

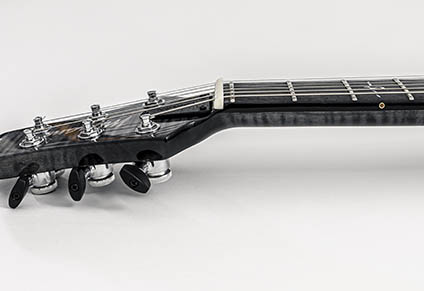

ONLY 10 DEGREES HEADSTOCK ANGLE

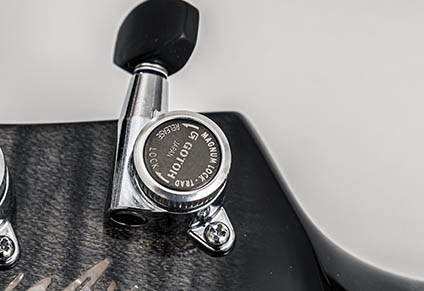

GOTOH LOCKING TUNERS

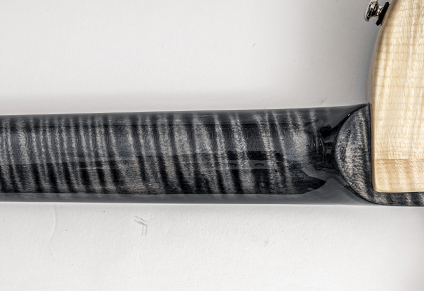

5A FLAME MAPLE NECK

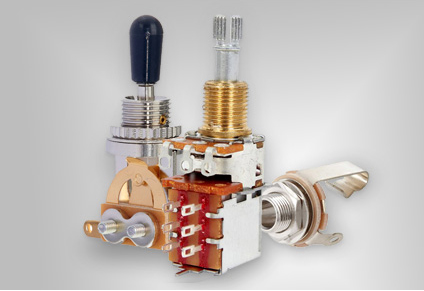

HIGH END ELECTRONICS
