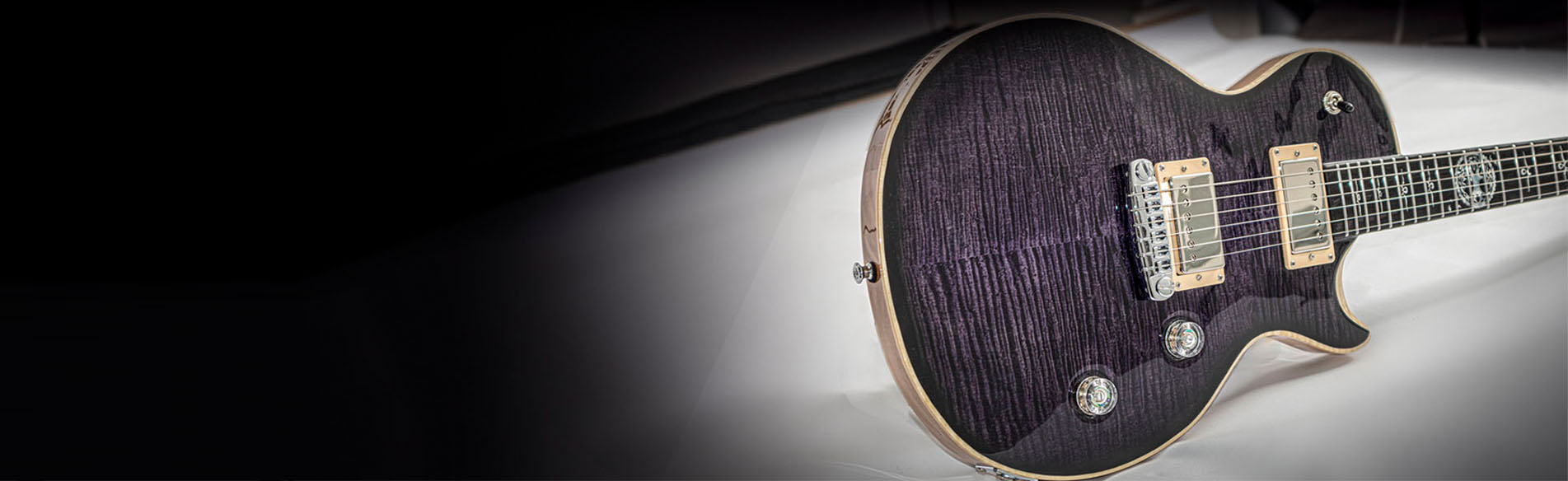

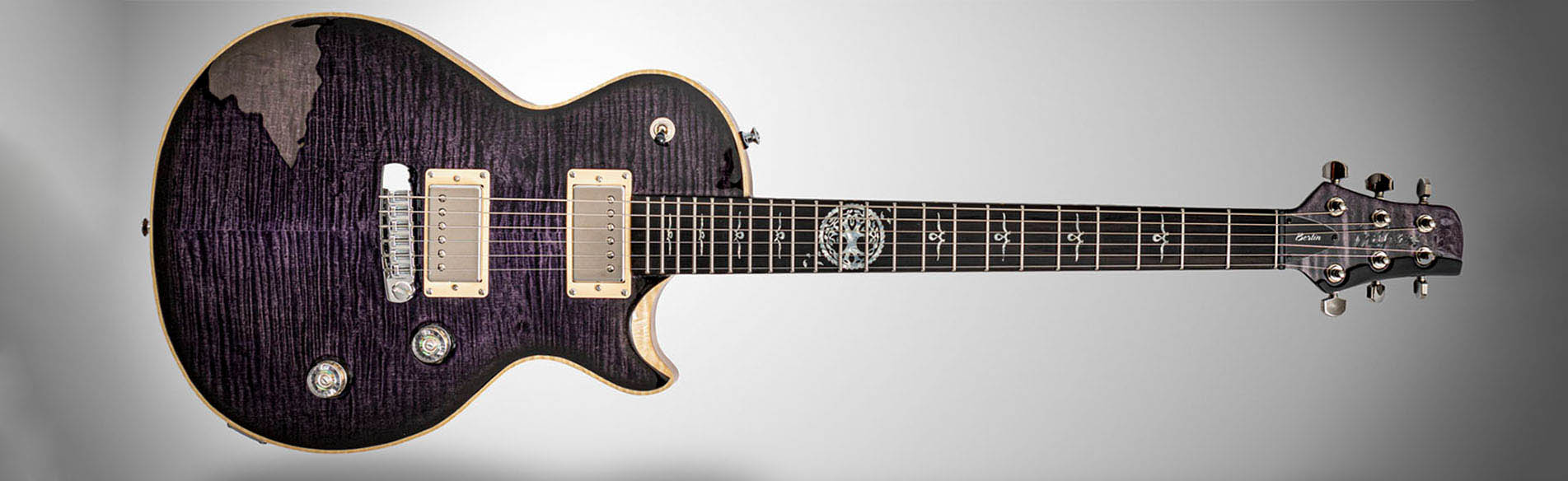

BERLIN (purple)

Berlin

Berlin series is a premium LP-style guitar. It's luxury ash body with premium grade 5A figured maple top, tightly connected to glued-in figured maple neck with ebony fingerboard should speak for it self. This guitar features only 10 degrees headstock angle which takes care of both - tuning stability and breakage safety. Tuning stability does not end there; Schaller locking tuners with real ebony knobs, zero fret with permanently lubricated Graph Tech nut and premium Schaller Signum wrap-around bridge. For better sustain and lighter weight we carefully chambered it's body. Playability is increased with stainless steel frets and rounded fretboard edges. For added esthetics we installed real brass side dots with wooden inlays. And Berlin series always comes with high-end pickups. It's a masterbuilt!

GENERAL

Type	Solidbody set-in
Color	Purple
scale length	24.75
Headstock angle	10 degrees
Weight	3,54 kg (7.8 lbs)

WOOD

Body top	Mastergrade Flamed Maple

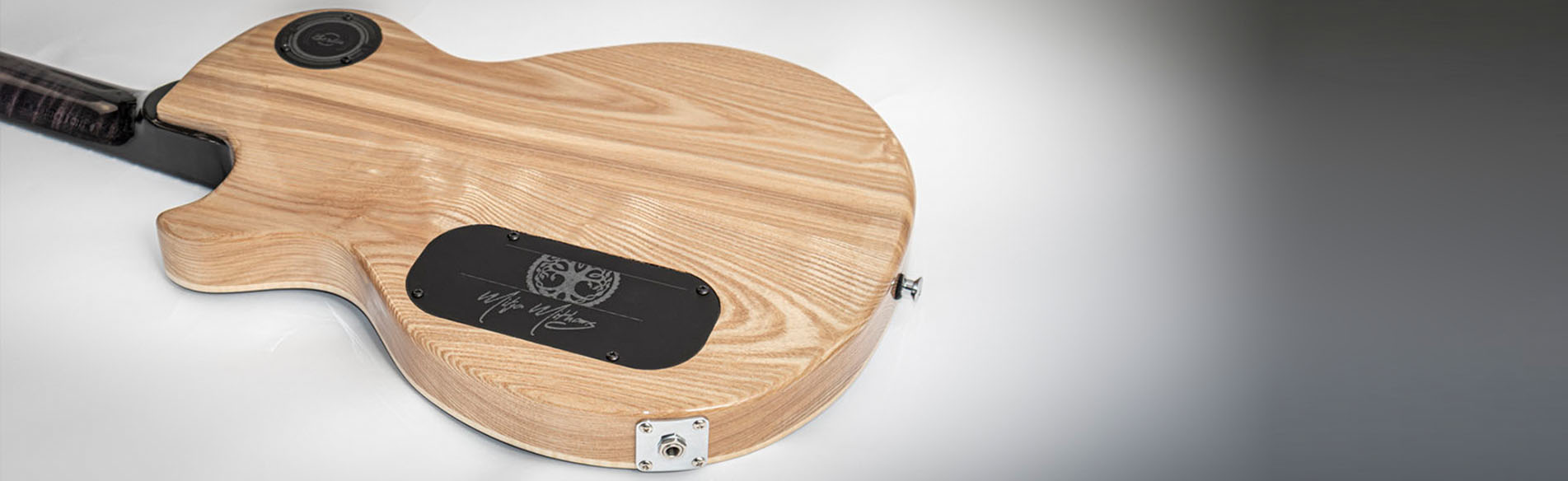

Body back	Ash
Neck	Mastergrade Flamed Maple
Fingerboard	Ebony

FINISH

Body	High Gloss
Neck	High Gloss
Binding	Natural flamed maple

NECK

Frets type	Stainless steel medium jumbo
Frets	22
Nut	Zero fret with Graph Tech nut
Inlays	Custom shaped Mother of Pearl celluloid
Thickness	20 mm (1st fret) - 22 mm (12th fret)

ELECTRONICS

Bridge pickup	Häussel 1959
Neck Pickup	Häussel 1959
Controls	Volume (push-pull), tone, 3-way switch
Custom Electronics	Treble bleed, push-pull split coil

HARDWARE

Bridge	Schaller Signum wrap-around
Tuners	Schaller locking (ruthenium)
STRINGS	Earnie Ball Regular Slinky 10-46
Extras	Hard Case included

BERLIN (purple)

Details

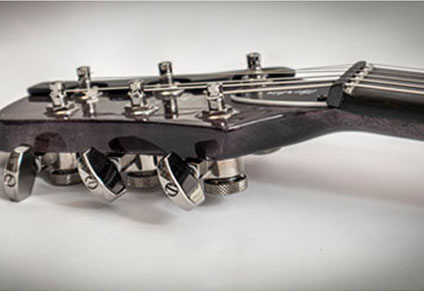

10 DEGREES HEADSTOCK ANGLE

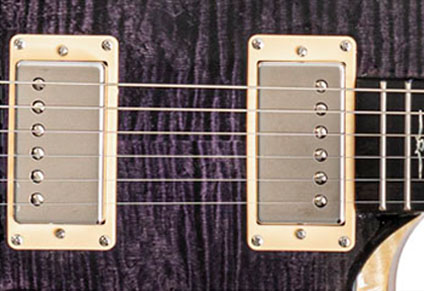

HÄUSSEL HAND WOUNDED PICKUPS

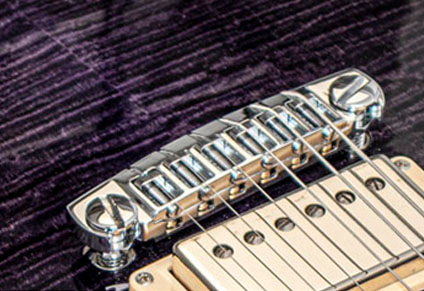

SCHALLER WRAP-AROUND BRIDGE

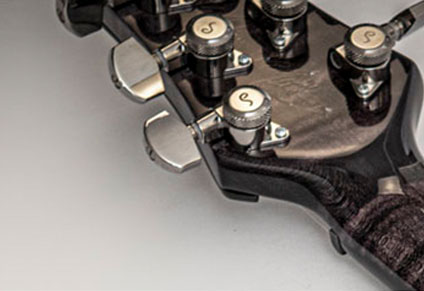

SCHALLER LOCKING TUNERS (RUTHENIUM)

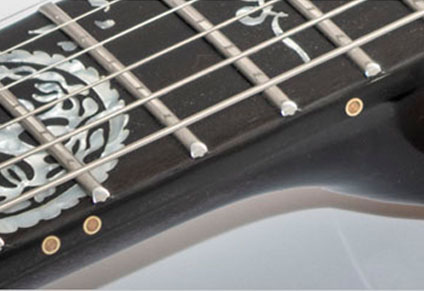

STAINLESS STEEL FRETS & BRASS SIDE DOTS

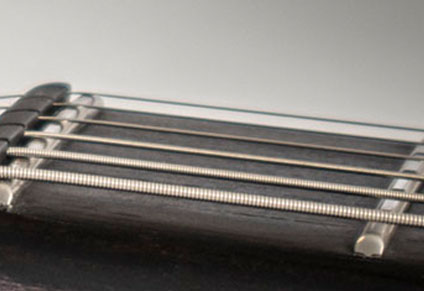

ZERO FRET & GRAPH TECH NUT

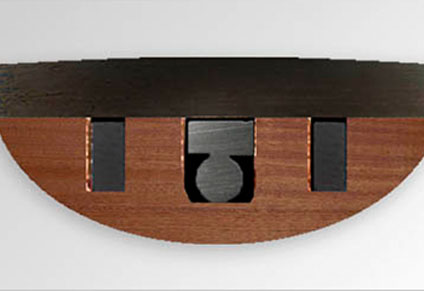

REINFORCED NECK WITH CARBON FIBER RODS

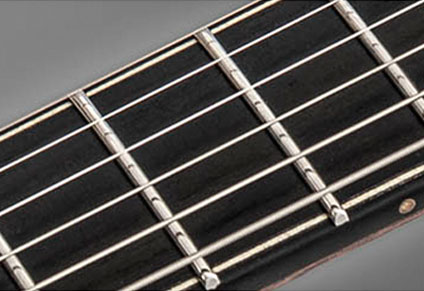

EBONY FINGERBOARD

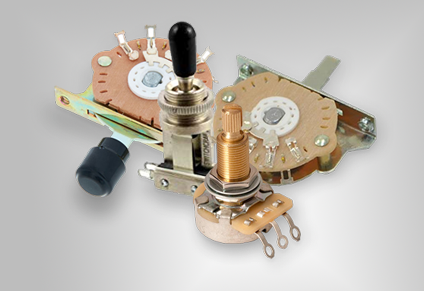

HIGH-END ELECTRONIC PARTS

Specs
