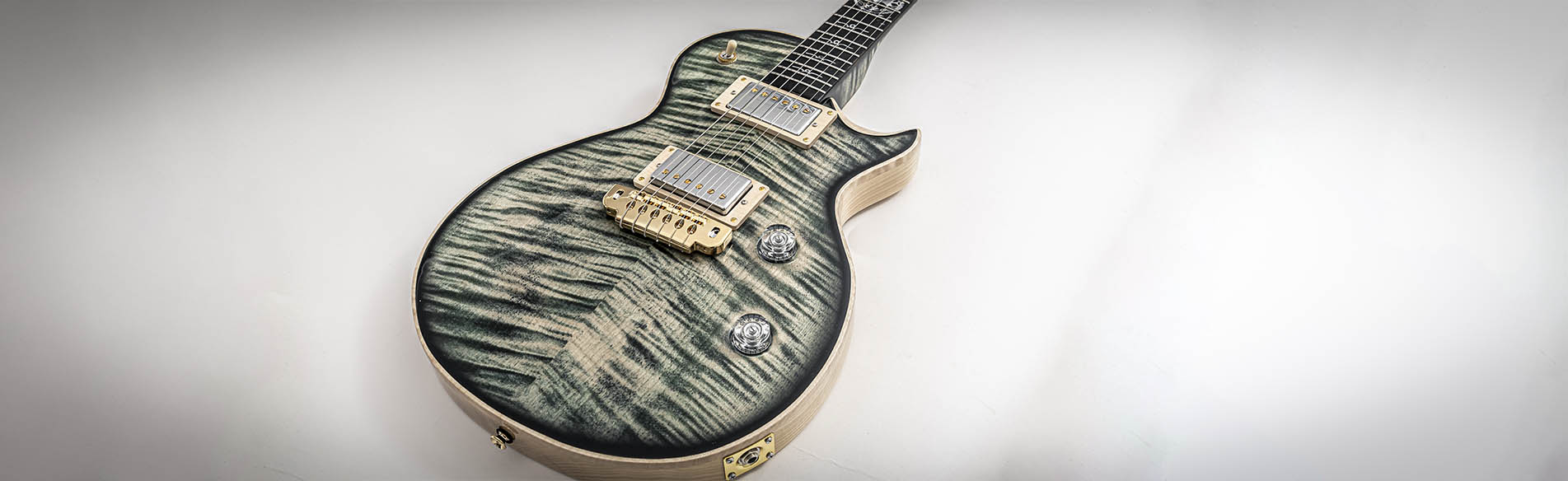

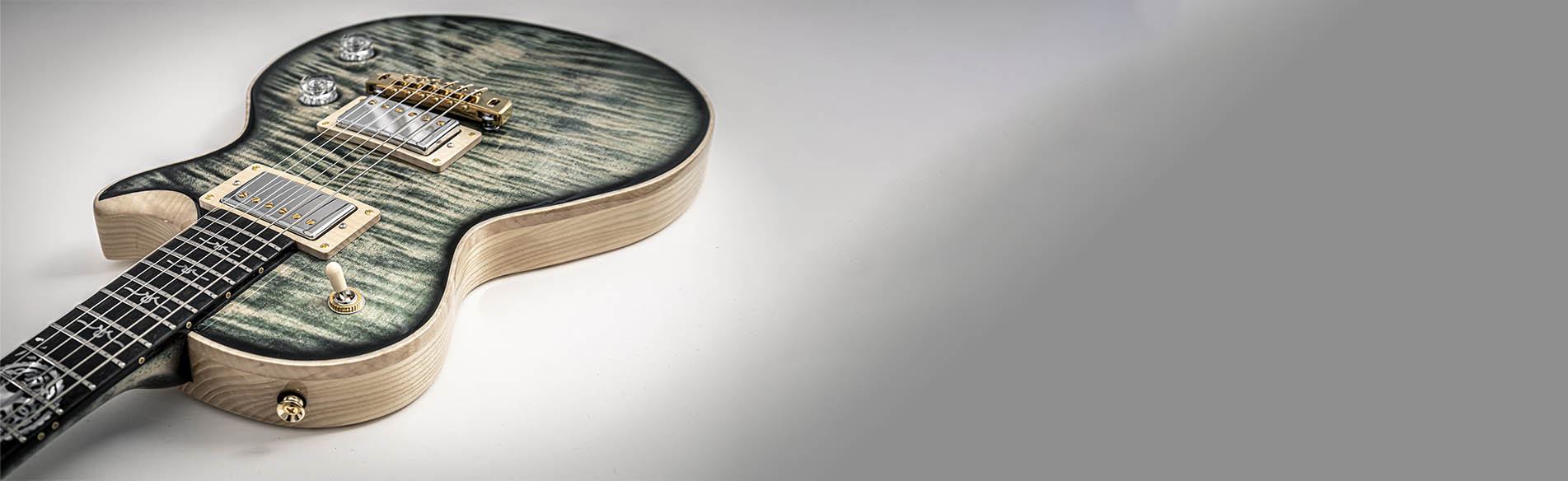

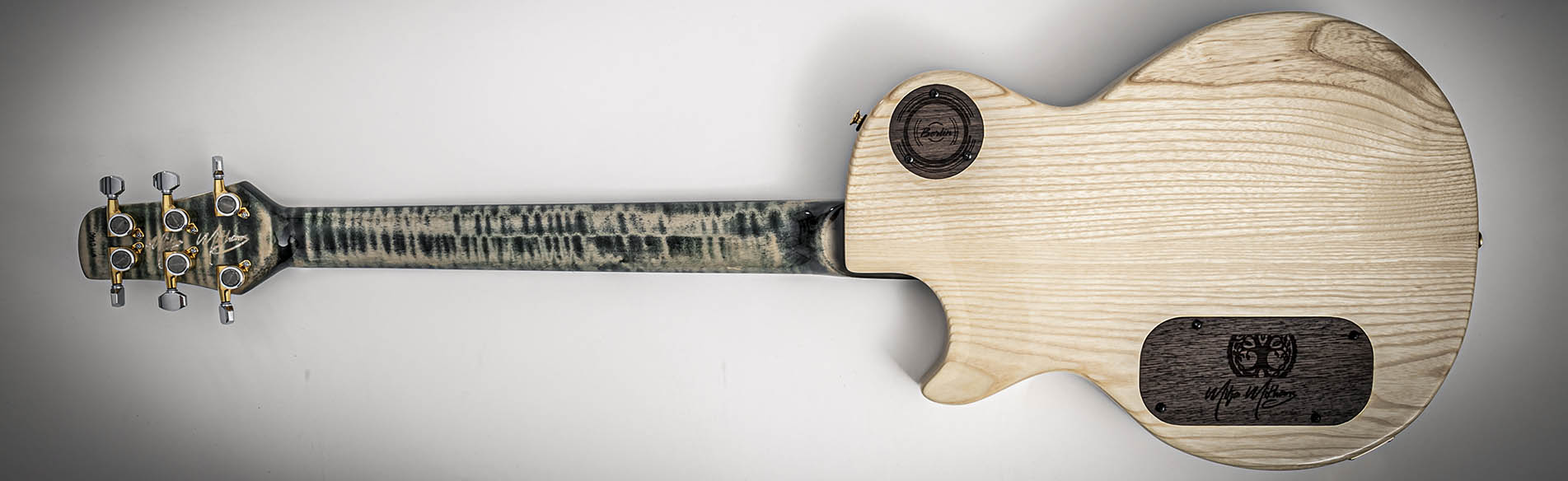

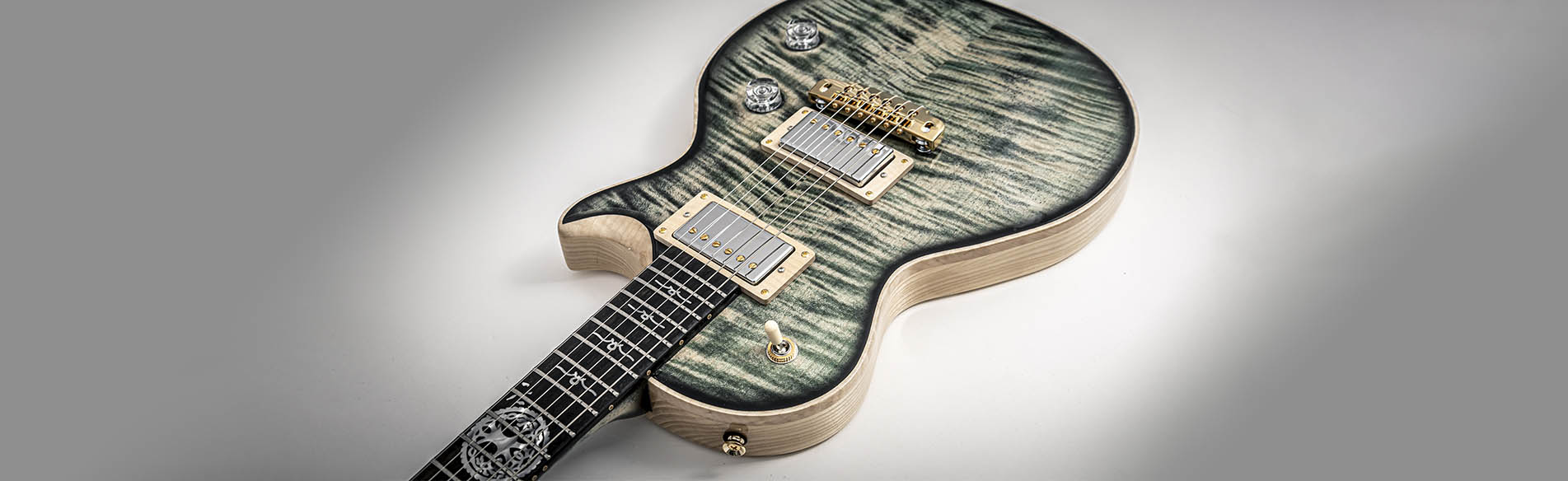

BERLIN

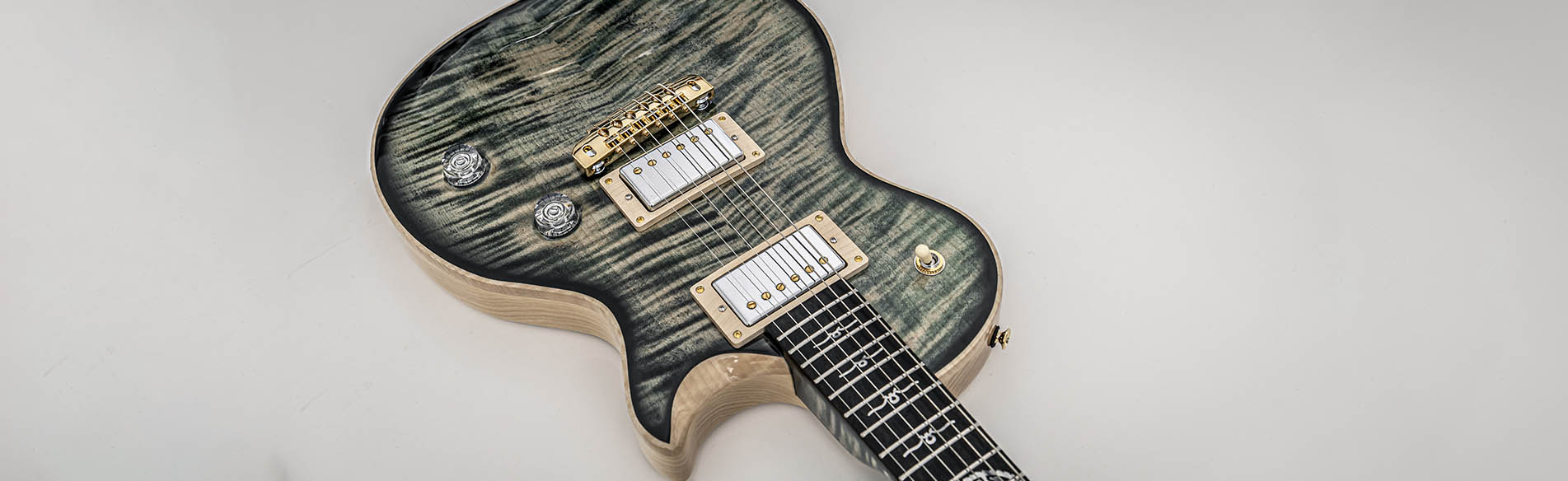

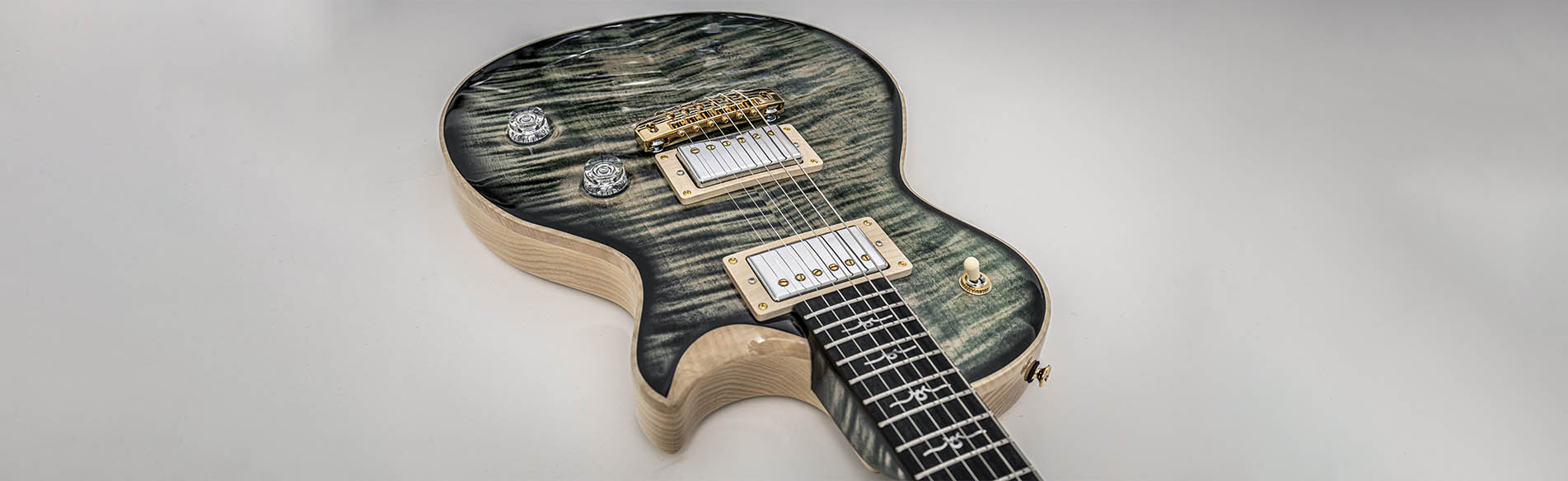

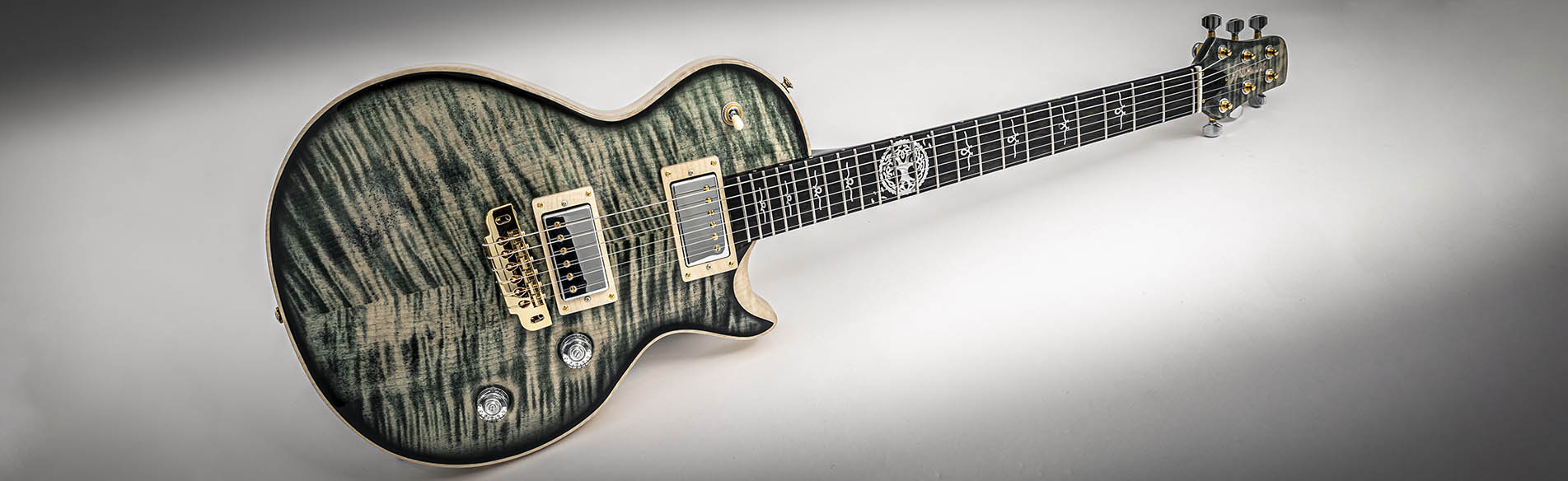

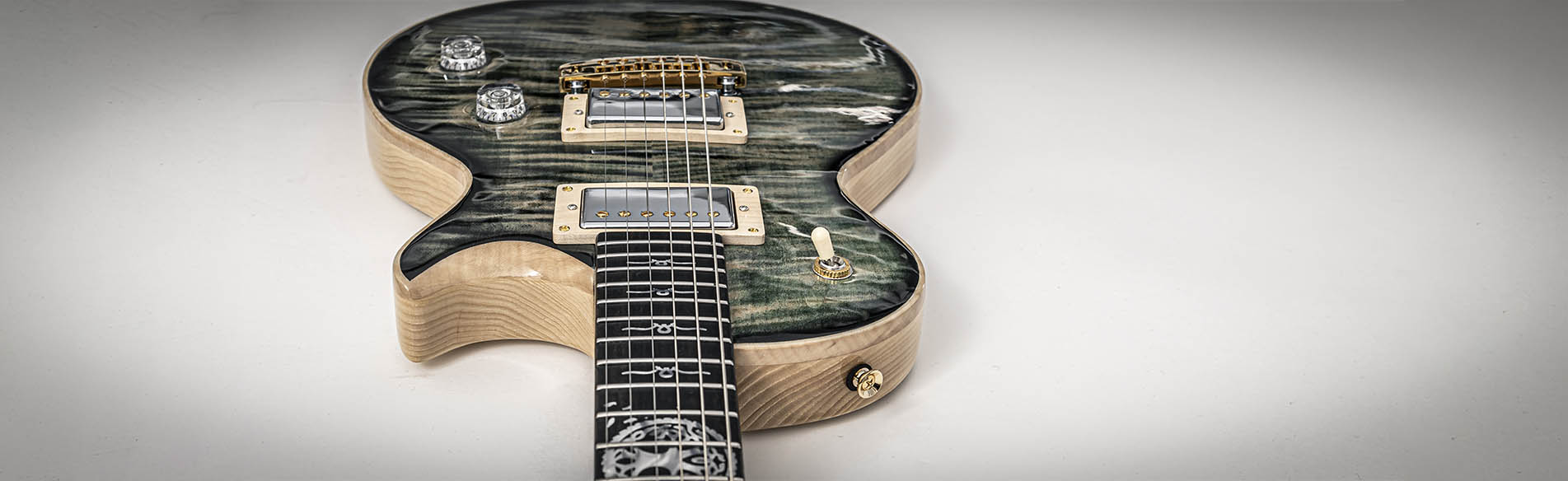

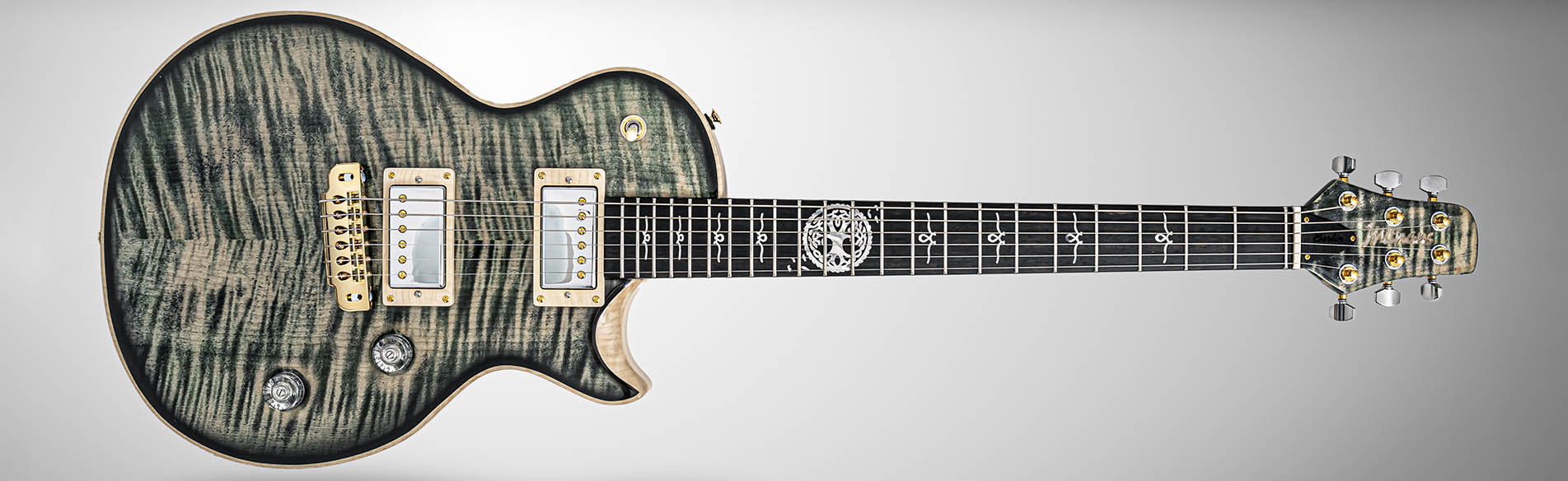

Berlin series is a premium LP-style guitar. It's luxury ash body with premium grade 5A figured maple top, tightly connected to glued-in figured maple neck with ebony fingerboard should speak for it self. This guitar features only 10 degrees headstock angle which takes care of both - tuning stability and breakage safety. Tuning stability does not end there; Gotoh locking tuners, zero fret with Duro nut and Wilkinson wrap-around bridge. For better sustain and lighter weight we carefully chambered it's body. Playability is increased with stainless steel frets and rounded fretboard edges. For added esthetics we installed real brass side dots with wooden inlays. And Berlin series always comes with boutique Mithans DAS P.A.F. pickups. It's a masterbuilt!

GENERAL

Type	Solidbody set-in, one piece neck, chambered
Color	Green flames, black burst, natural
scale length	24.75
Headstock angle	10 degrees
Weight	3,14 kg (6.92 lbs)

WOOD

Body top	5A Flamed Maple
Body back	Ash
Neck	One piece 5A Flamed Maple
Fingerboard	Ebony

FINISH

Body	High Gloss
Neck	High Gloss
Binding	Natural flamed maple

NECK

Frets type	Stainless steel
Frets	23
Inlays	Custom shaped Mother of Pearl celluloid
Thickness	20,2mm (1st fret) - 22,2mm (12th fret)
Neck Radious	12
Neck shape / profile	Oval C-shape
Nut width	43 mm

ELECTRONICS

Bridge pickup	Hand Wound Mithans DAS PAF'59
Neck Pickup	Hand Wound Mithans DAS PAF'59
Controls	Volume, tone, 3-way switch

HARDWARE

Bridge	Wilkinson wrap-around
Tuners	Gotoh locking
STRINGS	Earnie Ball Regular Slinky 10-46
Extras	Premium Hiscox Hard Case included

Details

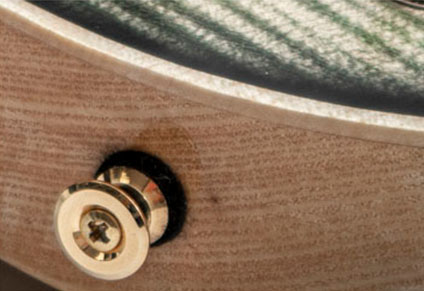

NATURAL FLAME MAPLE BINDING

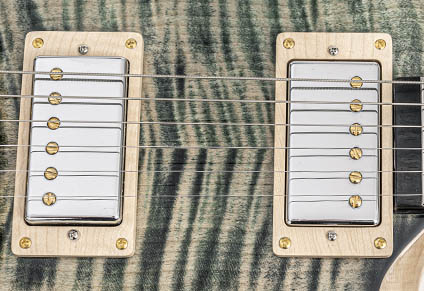

MITHANS DAS PAF'59 BOUTIQUE PICKUPS

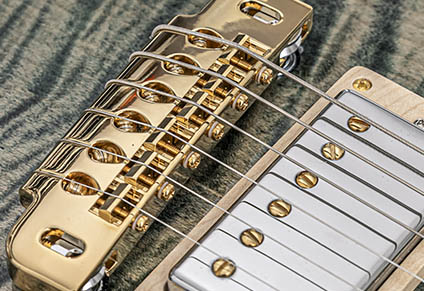

WILKINSON WRAP-AROUND BRIDGE

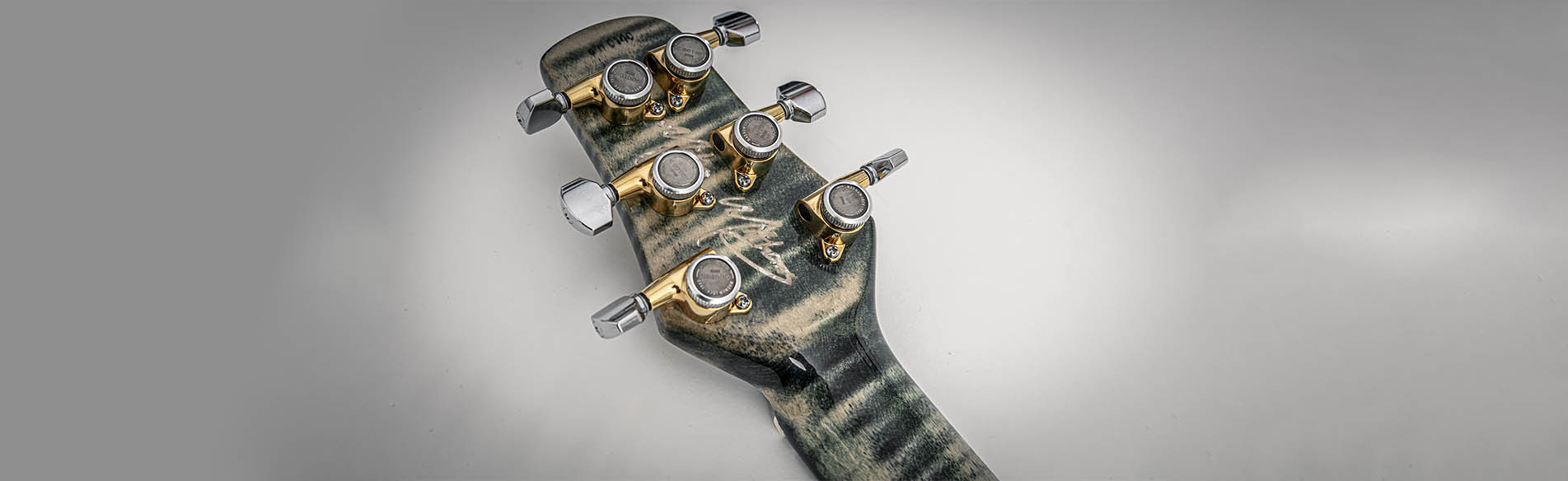

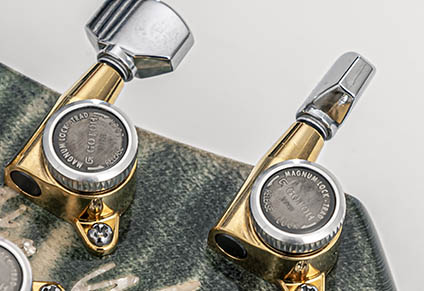

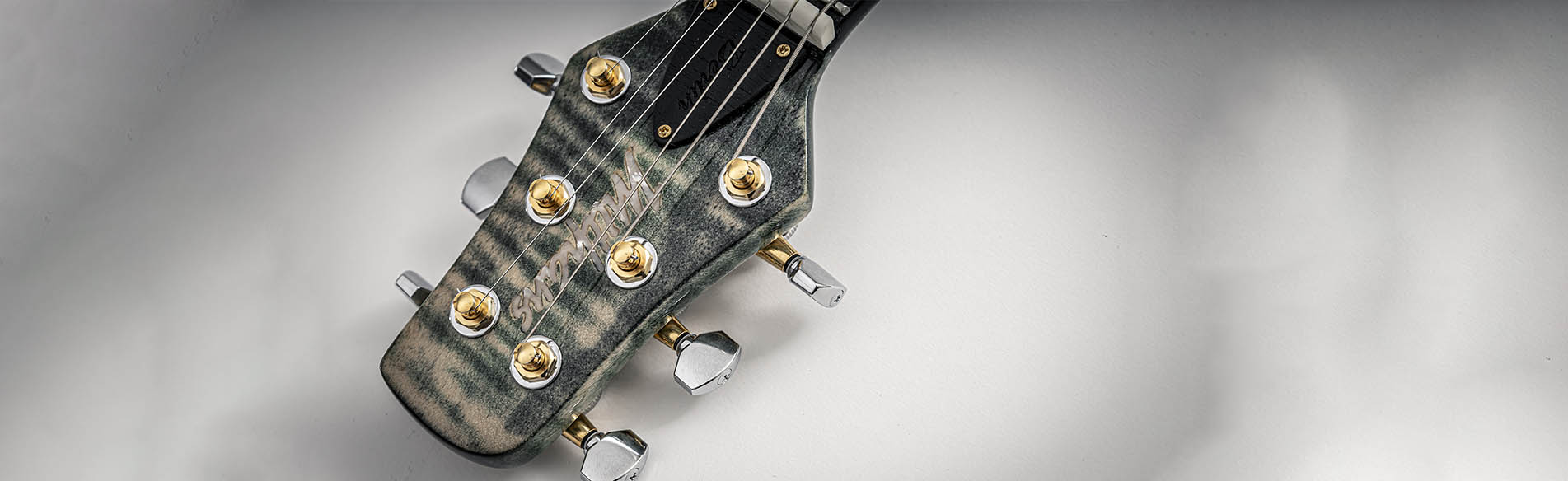

GOTOH LOCKING TUNERS

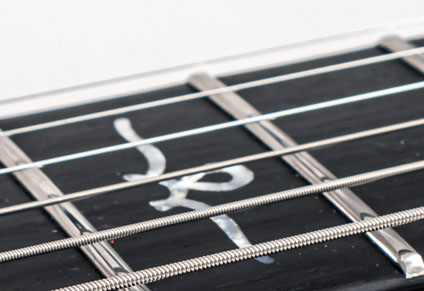

STAINLESS STEEL FRETS

ZERO FRET & DURO NUT

REINFORCED NECK WITH CARBON FIBER RODS

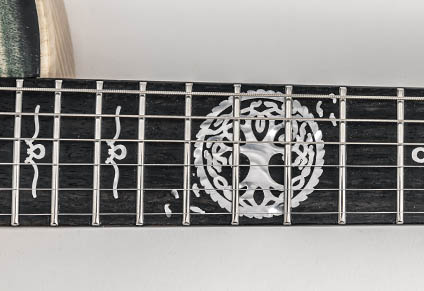

EBONY FINGERBOARD

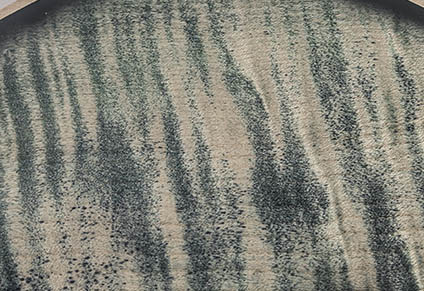

5A MASTERGRADE FLAME MAPLE TOP

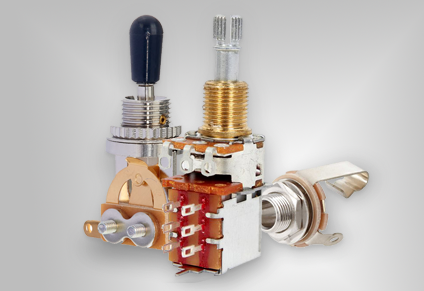

HIGH-END ELECTRONIC PARTS

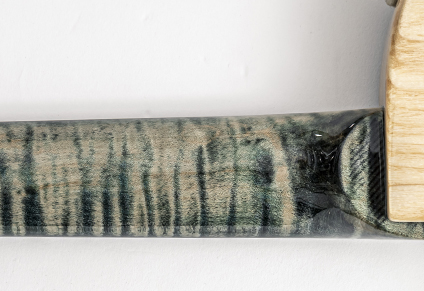

ONE PIECE 5A FLAME MAPLE NECK

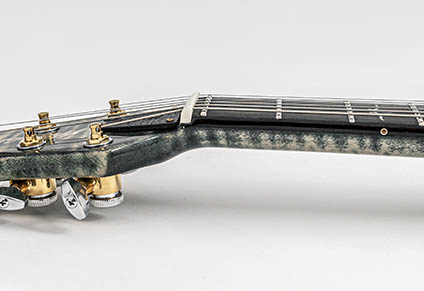

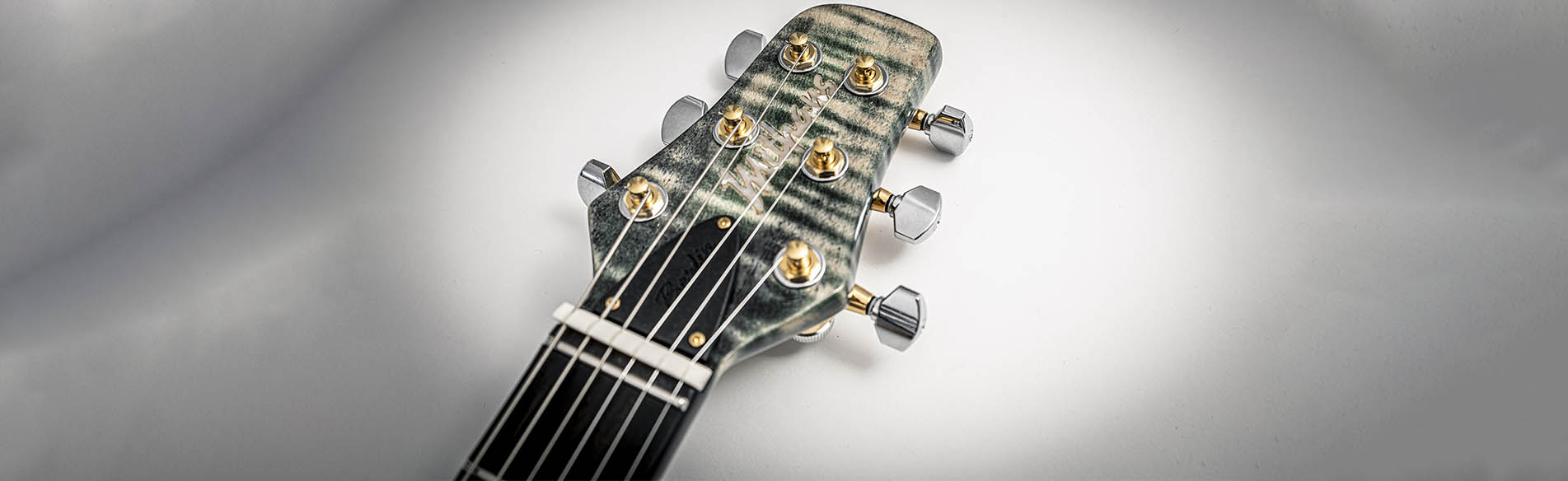

ONLY 10° HEADSTOCK ANGLE

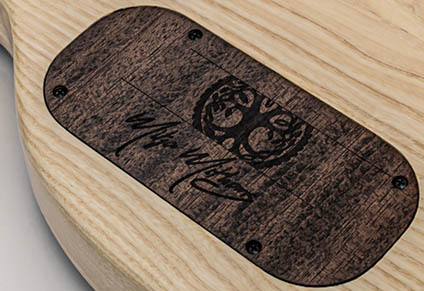

MAHOGANY COVERS

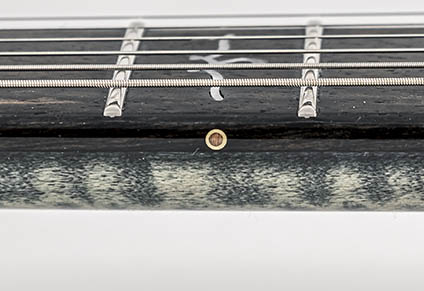

BRASS SIDE DOTS WITH WOODEN INLAYS
