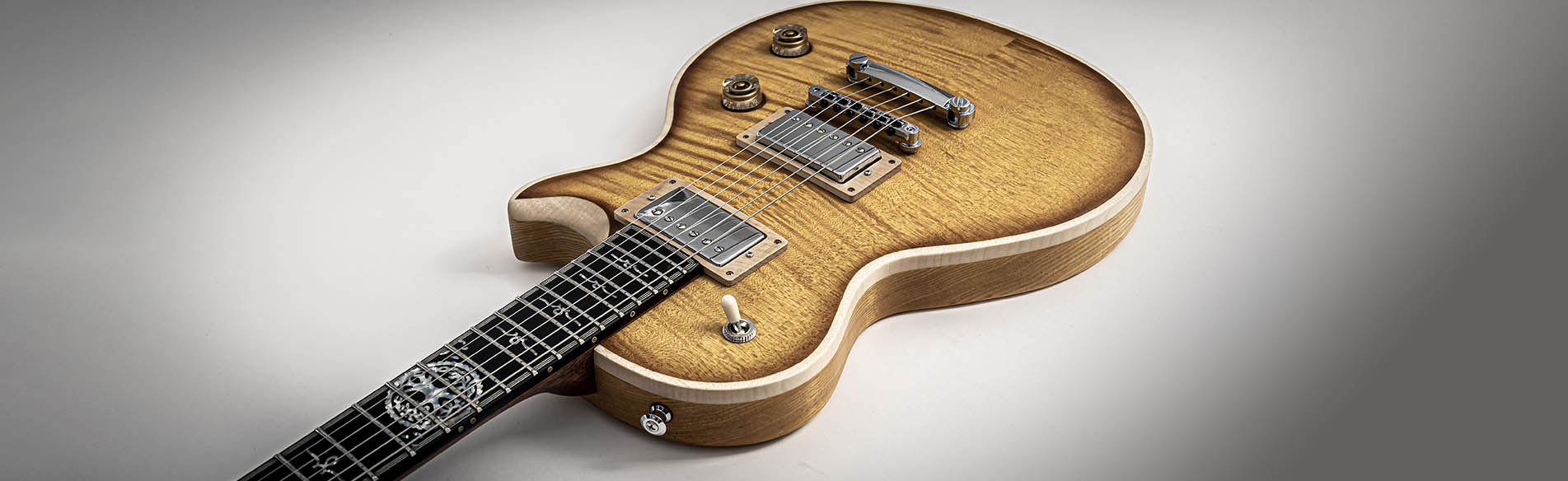

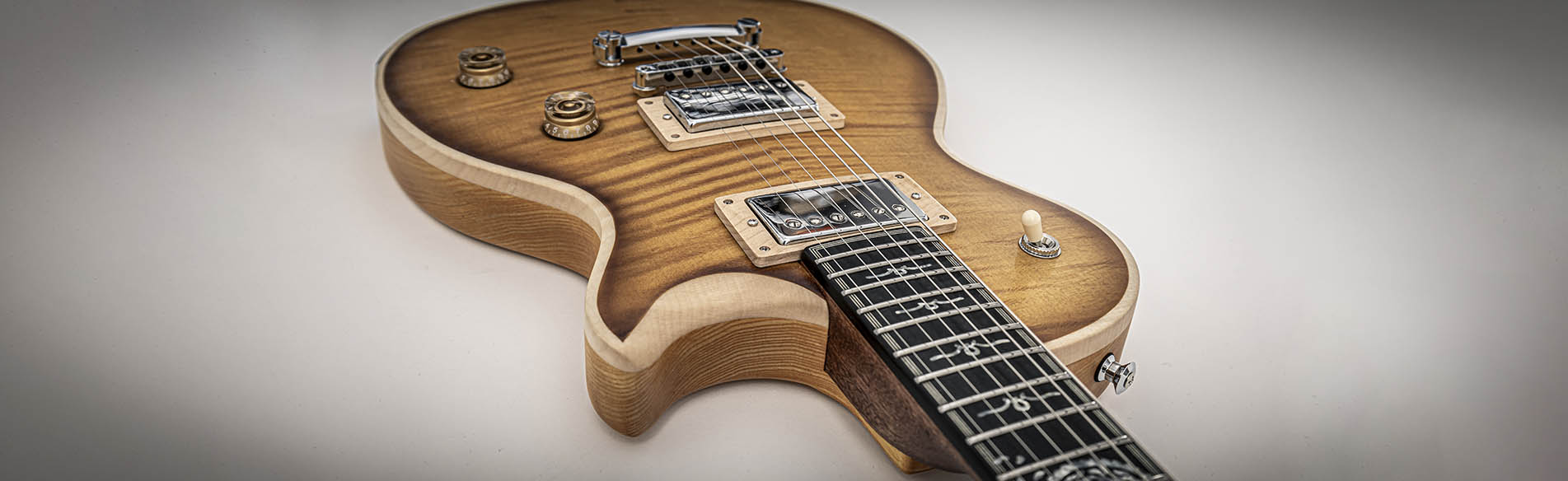

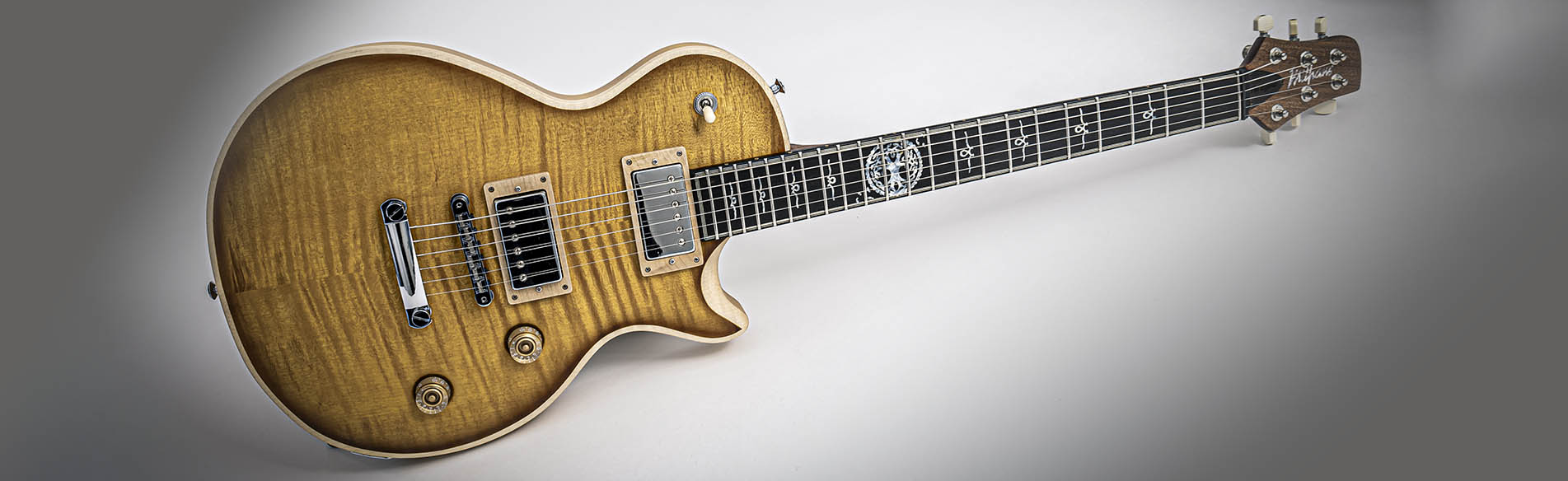

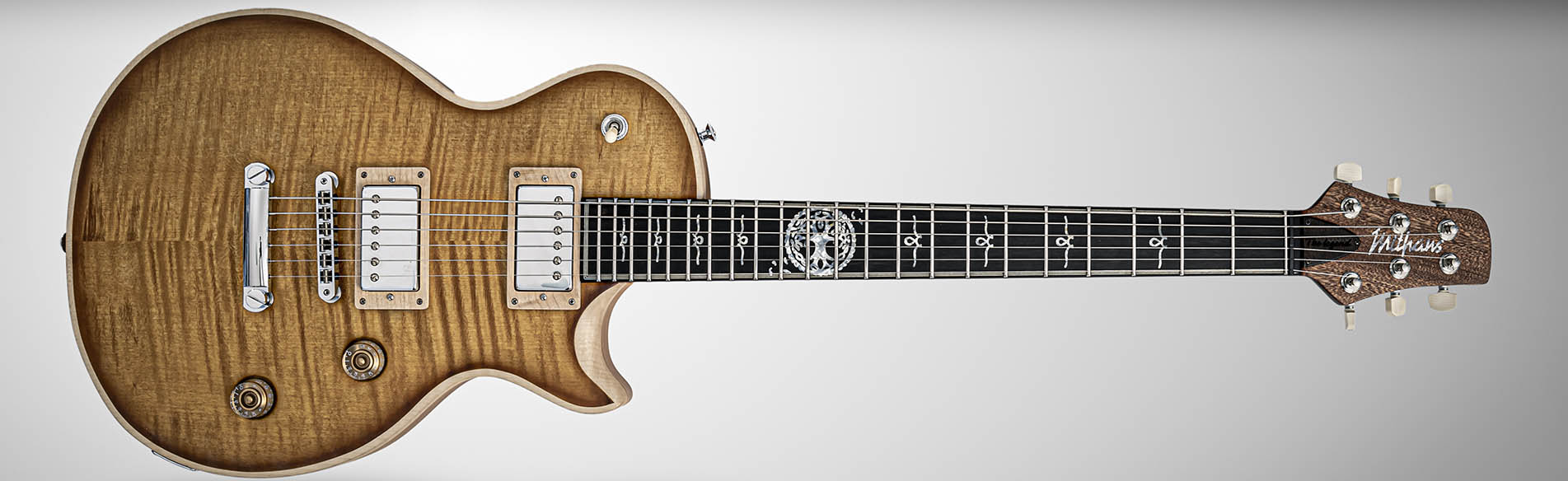

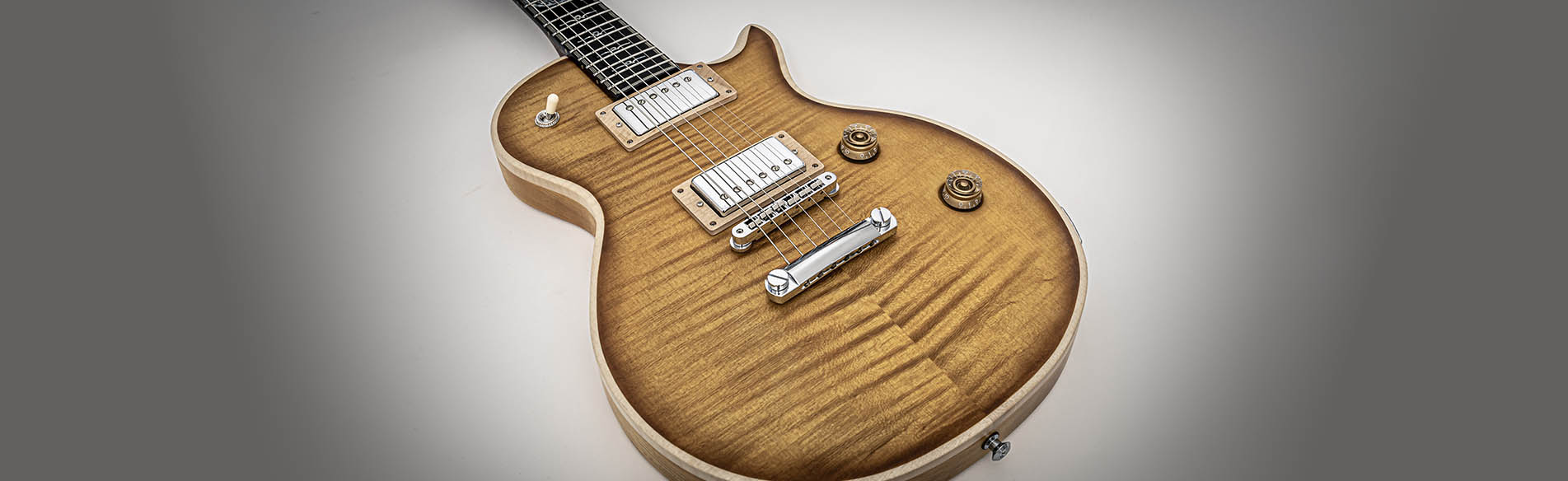

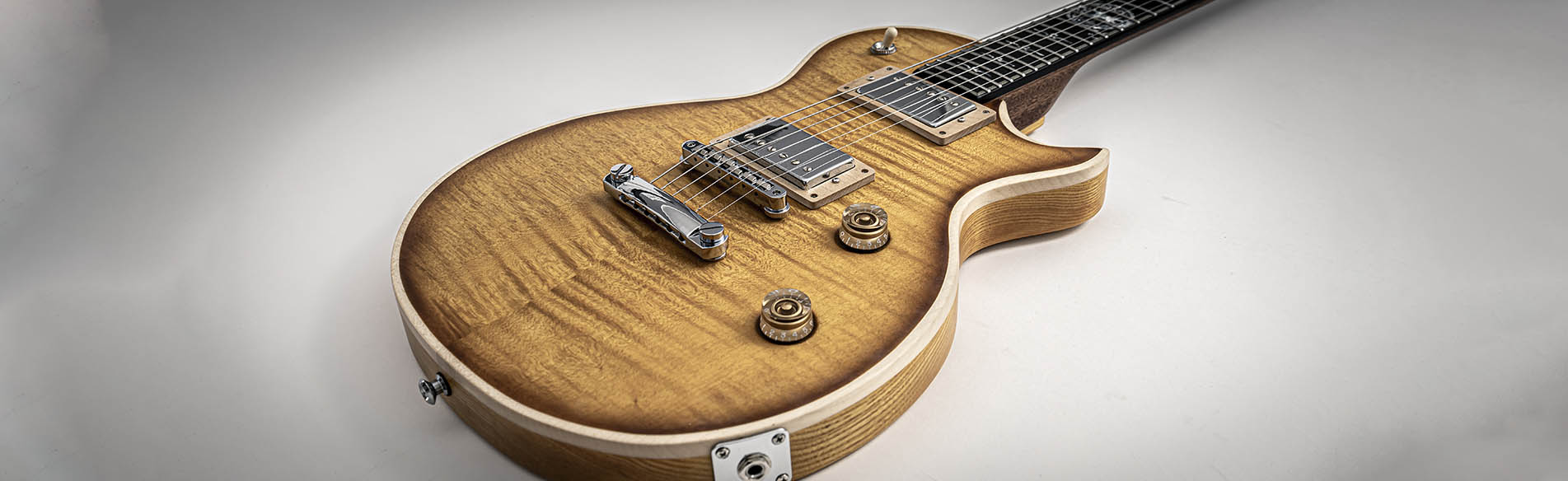

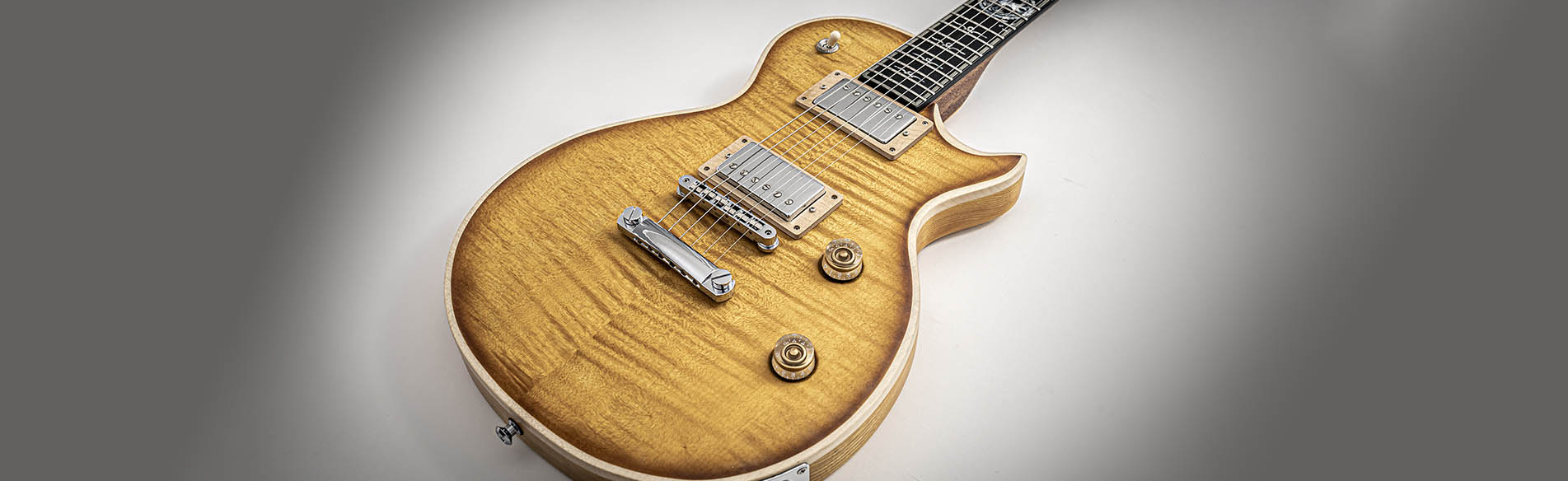

THE LEGEND (amber)

THE LEGEND

Inspired by the looks of the iconic guitar of the 50's, but upgraded to what it should be today. Beautiful ash body with flame maple top, both finished in iconic amber. Neck is built out of carefully selected African mahogany wood, finished in oil for superior playability. Tuning stability is no issue on The Legend. It features Schaller locking tuners, zero fret with permanently lubricated Graph Tech nut and Wilkinson tune-o-matic bridge. This guitar features only 10 degrees headstock angle which takes care of both - tuning stability and breakage safety. Playability is increased with stainless steel frets and rounded fretboard edges. For added esthetics we installed real brass side dots with wooden inlays, all covers including pickup rings are made out of walnut and mahogany wood. And the sound of the DAS PAF'59 pickups is simply amazing. It's a masterbuilt!

GENERAL

Type	Solidbody set-in
Color	Amber
scale length	24.75
Headstock angle	10 degrees
Weight	3,40 kg (7.49 lbs)

WOOD

Body top	5A Flamed Maple
Body back	Ash
Neck	One piece mahogany
Fingerboard	Ebony

FINISH

Body	Satin
Neck	Oil
Binding	Natural flamed maple

NECK

Frets type	Stainless steel
Frets	23
Nut	Zero fret with Graph Tech nut
Inlays	Custom shaped Mother of Pearl celluloid
Thickness	20,8mm (1st fret) - 22,3mm (12th fret)
Neck Radious	12
Neck shape / profile	Oval C-shape
Nut width	42 mm

ELECTRONICS

Bridge pickup	Hand Wound Mithans DAS PAF'59
Neck Pickup	Hand Wound Mithans DAS PAF'59
Controls	Volume, tone, 3-way switch

HARDWARE

Bridge	Wilkinson tune-o-matic
Tuners	Schaller locking tuners with GALALITH knobs
STRINGS	Earnie Ball Regular Slinky 10-46
Extras	Premium Hiscox Hard Case included

THE LEGEND (amber)

Details

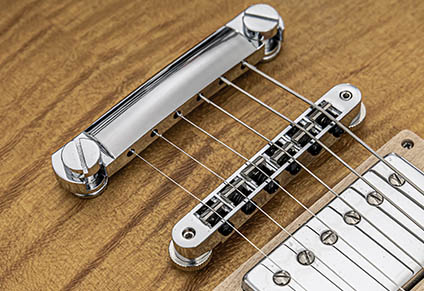

WILKINSON TUNE-O-MATIC BRIDGE

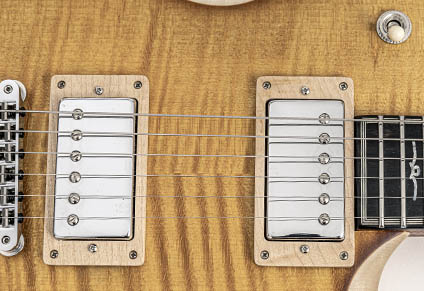

MITHANS DAS PAF'59 BOUTIQUE PICKUPS

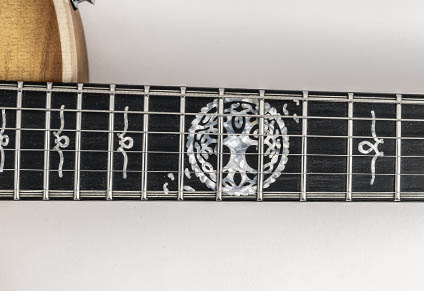

EBONY FINGERBOARD with CUSTOM INLAYS

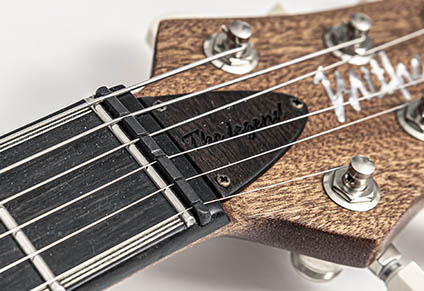

ZERO FRET with GRAPHTEC NUT

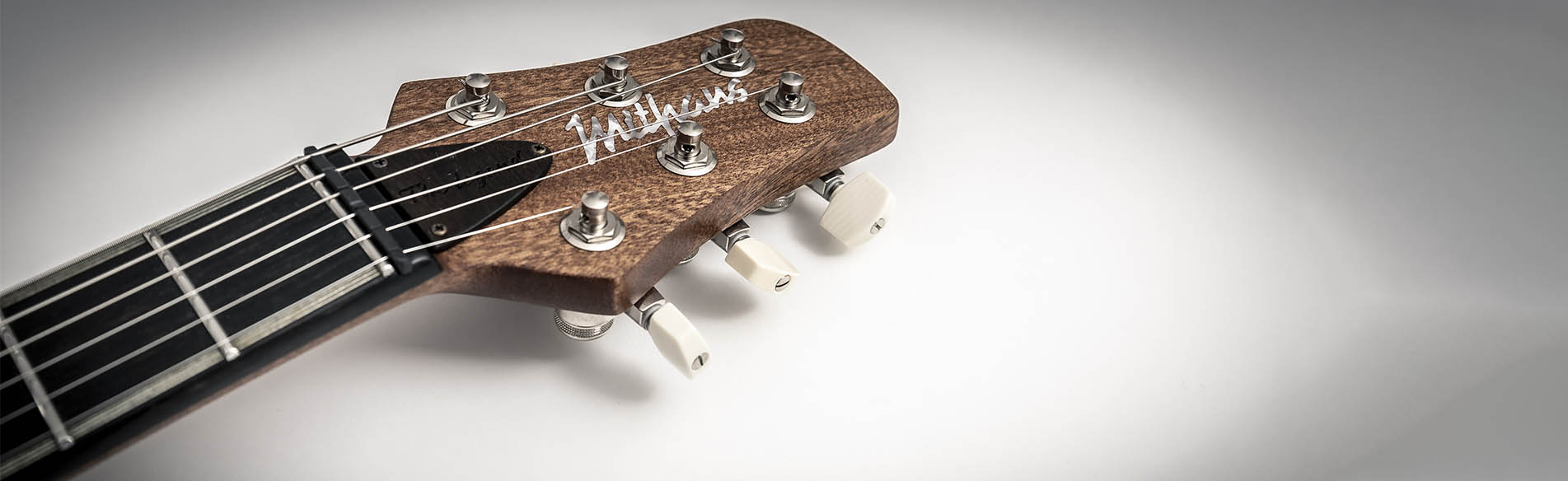

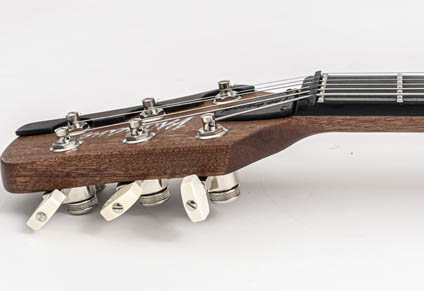

ONLY 10 DEGREES HEADSTOCK ANGLE

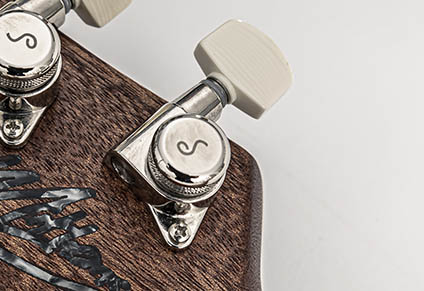

SCHALLER LOCKING TUNERS with GALALITH KNOBS

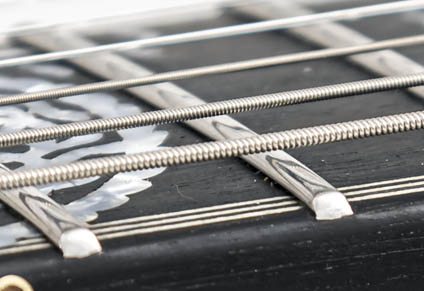

STAINLESS STEEL FRETS

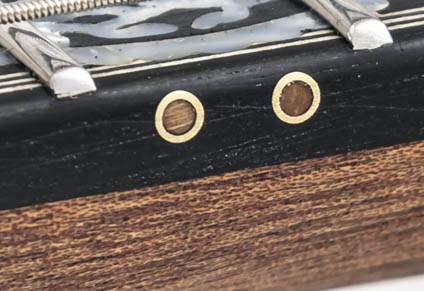

BRASS SIDE DOTS WITH WOODEN INLAYS

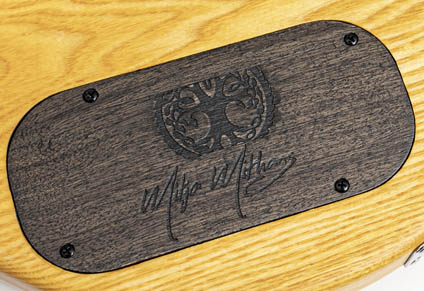

WALNUT COVERS

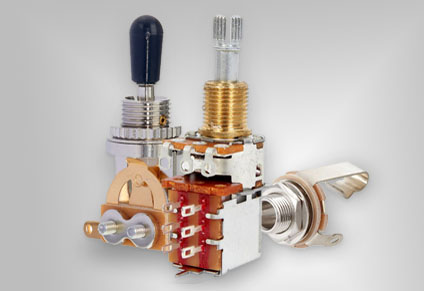

HIGH-END ELECTRONIC PARTS

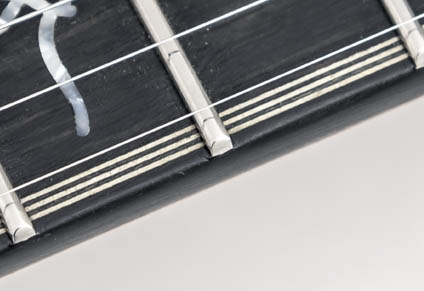

REAL WOOD PURFLINGS

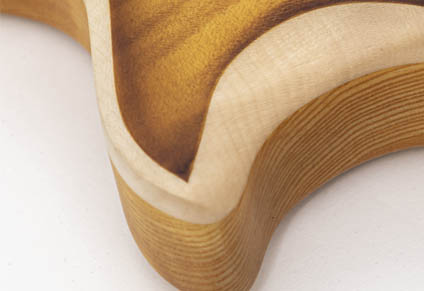

NATURAL MAPLE FAUX BINDING

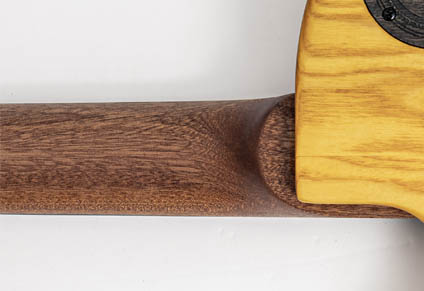

OILED MAHOGANY NECK
